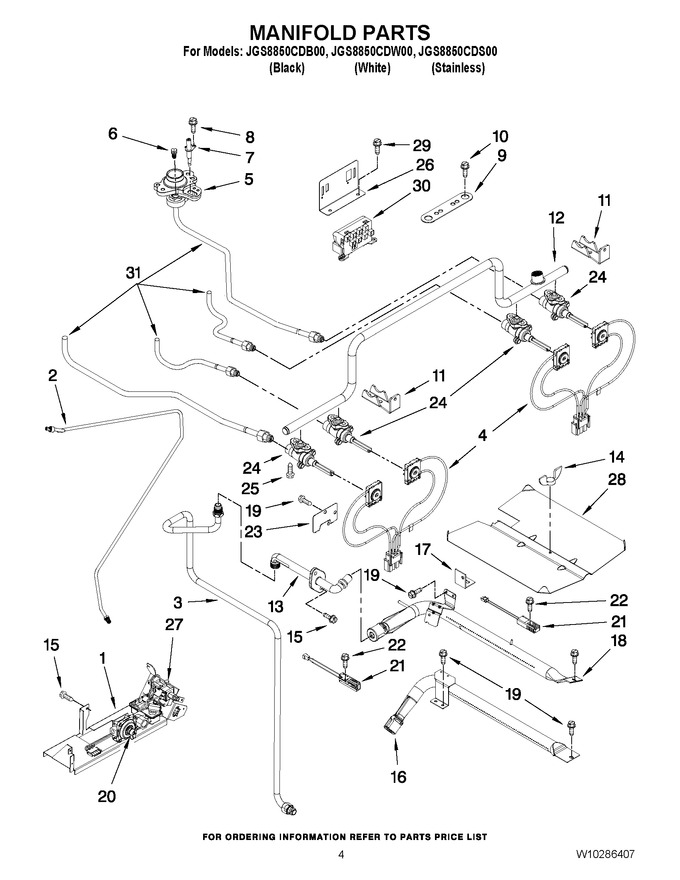

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F638-51 | Cover, Bnr Valve |
|
- | |||||
| 2 | 7506P489-60 | Tubing, Gas Supply |
|
$ 35.75 | |||||
| 3 | 7506P536-60 | Tube, Broil |
|
- | |||||
| 4 | WP74011647 | Harness, Valve Includes Switches (lf/lr) (Replaces: 7450P003-60) |
|
$ 232.27 | |||||
| 4 | WP74011648 | Harness, Valve Includes Switches (rf/rr) (Replaces: 7450P004-60) |
|
Immediately | $ 232.28 | ||||
| 5 | 74009553 | Orifice, Holder (5k,lr) (Replaces: 7527P042-60) |
|
$ 87.81 | |||||
| 5 | WP7527P002-60 | Orifice, Holder (9.2k, Rr) (Replaces: 7527P002-60) |
|
$ 85.05 | |||||
| 5 | WP7527P061-60 | Orifice, Holder (lf Dual) (Replaces: 7527P061-60) |
|
$ 113.03 | |||||
| 5 | WP7527P004-60 | Orifice, Holder (16k,rf) (Replaces: 7527P004-60) |
|
$ 85.05 | |||||
| 6 | WPW10407678 | Orifice (rf) (Replaces: 7527P081-60) |
|
$ 126.04 | |||||
| 6 | WPW10407680 | Orifice (lr) (Replaces: 7527P084-60) |
|
$ 115.09 | |||||
| 6 | 7527P083-60 | Orifice (lf,rr) |
|
- | |||||
| 7 | WP74009336 | Ignitor (4) (Replaces: 7432P121-60) |
|
Immediately | $ 27.00 | ||||
| 8 | WP8273062 | Screw, Ignitor (Replaces: 7101P606-60) |
|
Immediately | $ 7.91 | ||||
| 9 | W10160530 | Retainer, Base (4) |
|
- | |||||
| 10 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 11 | W10160655 | Bracket, Valve (4) |
|
- | |||||
| 12 | 7513P473-60 | Pipe,manifold |
|
$ 360.29 | |||||
| 13 | WP74010901 | Fitting, Broil (Replaces: 7507P407-60) |
|
$ 87.75 | |||||
| 14 | 7103P030-60 | Nut, Wing |
|
$ 7.43 | |||||
| 15 | W11846982 | Screw (Replaces: 7101P676-60) |
|
$ 11.75 | |||||
| 16 | 7505P254-60 | Burner, Bake |
|
- | |||||
| 17 | 3807F480-45 | Support, Bake Bnr |
|
$ 17.01 | |||||
| 18 | 7505P293-60 | Burner, Broil |
|
$ 89.91 | |||||
| 19 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 20 | WP74006035 | Valve/regulator (Replaces: 7510P079-60) |
|
$ 308.75 | |||||
| 21 | 74007498 | Ignitor (bake/broil) (Replaces: 7432P106-60) |
|
$ 87.11 | |||||
| 22 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 23 | 4005F421-45 | Cover,ignitor Wire |
|
- | |||||
| 24 | 7502P470-60 | Valve, Top Burner (lr 5k) |
|
- | |||||
| 24 | 7502P548-60 | Valve, Top Burner (rf 16k) |
|
- | |||||
| 24 | 7502P471-60 | Valve, Top Burner (rr/lf 9.2k) |
|
- | |||||
| 25 | W11233072 | Support, Screw (4) (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 26 | 3807F752-45 | Support, Spark Mod |
|
$ 27.55 | |||||
| 27 | WP7501P232-60 | Valve, Safety (Replaces: 7501P232-60) |
|
Immediately | $ 353.41 | ||||
| 28 | 3601F307-45 | Baffle, Bake (broil) |
|
$ 200.26 | |||||
| 28 | 3601F239-45 | Baffle, Bake (bake) |
|
- | |||||
| 29 | WPY706189 | Screw (Replaces: 7101P346-60) |
|
Immediately | $ 7.55 | ||||
| 30 | WPW10475147 | Spark Module (Replaces: 7431P038-60) |
|
Immediately | $ 238.24 | ||||
| 31 | 7506P448-60 | Tube, Burner (lr) |
|
$ 83.70 | |||||
| 31 | 7506P445-60 | Tube, Burner (rf) |
|
$ 8.76 | |||||
| 31 | 7506P470-60 | Tube, Burner (tubing, Outer Dual) |
|
$ 8.84 | |||||
| 31 | 7506P469-60 | Tube, Burner (tubing, Inner Dual) |
|
$ 8.36 | |||||
| 31 | 7506P447-60 | Tube, Burner (rr) |
|
$ 10.22 | |||||
| NI | W10258117 | Spuds, Lp Gas |
|
- |
