SELECT A DIAGRAM

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts

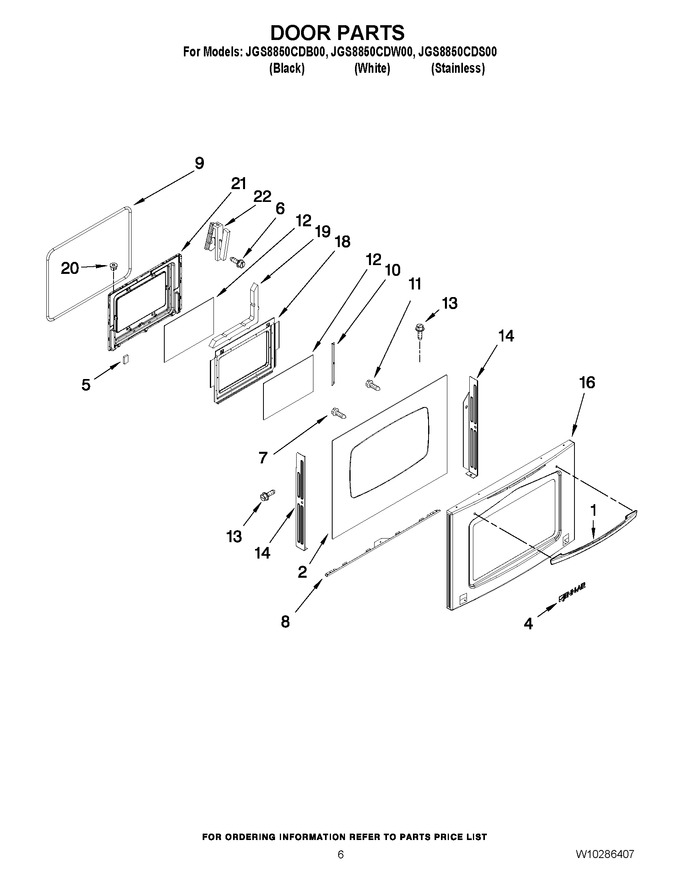

04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10223152		Handle, Door (stainless)				$ 141.55
1	W10223164		Handle, Door (white)				$ 261.26
1	W10223463		Handle, Door (black)		Appelez-nous	-
2	W10202584		Glass, Door (black)		Appelez-nous	-
2	2001D312-50		Glass, Door (stainless)		Appelez-nous	-
2	W10204432		Glass, Door (white)		Appelez-nous	-
4	WPW10214168		Nameplate (black)   (Replaces: W10190724)				$ 81.86
4	W10190723		Nameplate (white)				$ 106.62
4	WPW10214168		Nameplate (stainless)   (Replaces: W10214168)				$ 81.86
5	7109P082-60		Spacer, Rubber		Appelez-nous	-
6	WP3400029		Screw   (Replaces: 7103P176-60)			Immediately	$ 7.76
7	WP90767		Screw, Handle   (Replaces: 7101P426-60)			Immediately	$ 7.82
8	8020P074-60		Support, Glass		Appelez-nous	-
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 86.23
10	3801F886-51		Bracket, Glass				$ 38.25
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 13.55
12	74003645		Glass, Inner (2)   (Replaces: 7902P436-60)			Immediately	$ 180.59
13	WP98008545		Screw   (Replaces: 7101P633-60)				$ 17.71
14	3608F138-71		Trim, Door (white)				$ 34.76
14	3608F138-70		Trim, Door (black)				$ 66.28
16	3603F075-70		Frame, Door (black)				$ 187.06
16	3603F075-71		Frame, Door (white)				$ 390.67
18	3601F373-51		Baffle, Door				$ 271.36
19	7002P246-60		Insulation, Door				$ 58.49
20	WP74001574		Nut, Snap (black)   (Replaces: 7103P141-60)			Immediately	$ 11.01
20	WP7103P114-60		Nut, Snap (white)   (Replaces: 7103P039-60)				$ 10.99
21	2402W312-19		Lining, Door				$ 144.50
22	74011475		Hinge, Door   (Replaces: 7106P143-60)			Immediately	$ 130.52

    View Diagram in Separate Window       Print Part List
