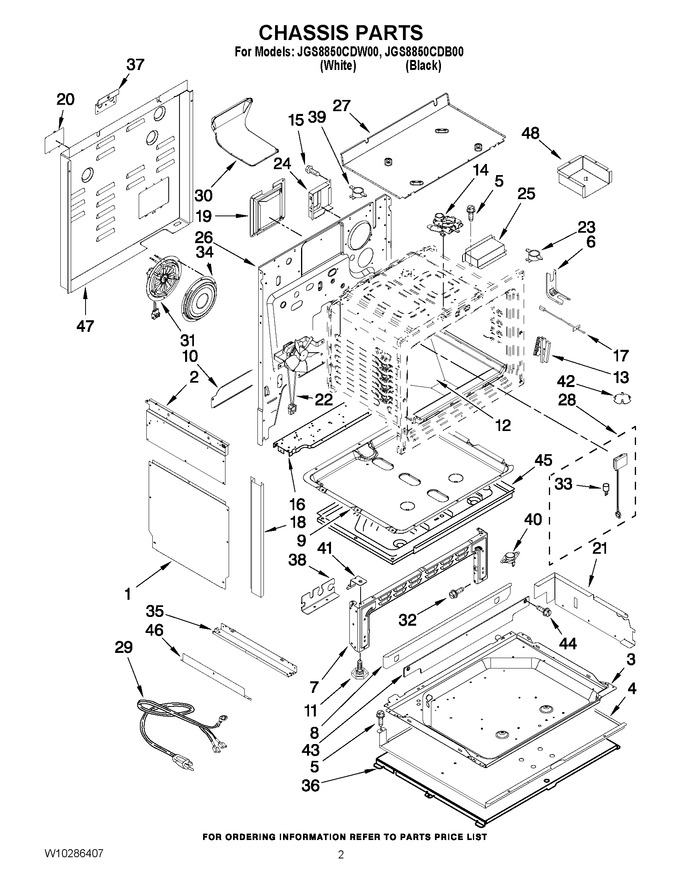

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3604F416-51		Shield, Lower Side				$ 59.21
2	2618F201-51		Panel, Shield (left)				$ 32.51
2	2618F206-51		Panel, Shield (right)				$ 135.68
3	3804F245-51		Retainer, Bottom				$ 97.02
4	3604F326-45		Shield, Drawer		Appelez-nous	-
5	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
6	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
7	W10271711		Oven, Front Lower				$ 144.40
8	3601F251-45		Baffle, Oven Front		Appelez-nous	-
9	3401F044-45		Pan, Burner		Appelez-nous	-
10	3826F066-51		Extention, Back				$ 7.82
11	WP74010805		Foot, Leveler   (Replaces: 7101P660-60)				$ 7.19
12	WP2205F054-19		Bottom, Oven   (Replaces: 2205F054-19)				$ 737.21
13	74011475		Hinge   (Replaces: 7106P143-60)			Immediately	$ 130.52
14	74010819		Latch Assembly   (Replaces: 8002P089-60)				$ 360.32
15	74003975		Screw, Latch Lever   (Replaces: 7101P375-60)				$ 13.36
16	3807F640-51		Support, Valve/reg				$ 31.03
17	12001655		Sensor, Short   (Replaces: 7430P041-60)			Immediately	$ 45.57
18	3608F138-71		Trim, Side				$ 34.76
19	3804F300-51		Retainer, Conv Insulation				$ 66.09
20	4005F612-51		Access Panel				$ 46.13
21	W10256425		Shield, Gas (lower Back)		Appelez-nous	-
22	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 318.60
23	7450P030-60		Switch, Limit			Immediately	$ 96.95
24	4005F810-51		Cover, Access				$ 248.98
25	4005F750-51		Cover, Door Lock		Appelez-nous	-
26	3804F313-51		Back, Main Gas		Appelez-nous	-
27	4011F496-51		Bottom,burner Box		Appelez-nous	-
28	7407P180-60		Light Assembly		Appelez-nous	-
29	7402P086-60		Cord, Power		Appelez-nous	-
30	8026P095-60		Box, Assy Vent				$ 60.62
31	W10206590		Fan, Convection				$ 225.55
32	WP4159193		Screw   (Replaces: 7101P017-60)				$ 4.77
33	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 18.67
34	3605F350-19		Cover, Fan		Appelez-nous	-
35	4020W035-80		Pedestal, Bottom				$ 112.82
36	3604F327-51		Shield, Heat Pouch				$ 71.86
37	3807F633-45		Support, Element		Appelez-nous	-
38	W10256422		Bracket,pwr Supply		Appelez-nous	-
39	7403P647-60		Switch, Hi-limit (140f-120f)				$ 36.31
40	7403P657-60		Switch, Hi Limit (100f/85f)		Appelez-nous	-
41	3807F727-45		Support, Oven (bottom)				$ 18.96
42	7718P034-60		Plug- Hole				$ 14.25
43	7713P054-60		Trim, Frt. Frame		Appelez-nous	-
44	WP98008545		Screw   (Replaces: 7101P633-60)				$ 17.71
45	3804F245-51		Retainer, Insulation				$ 97.02
46	3826F034-51		Extension, Heat Shield		Appelez-nous	-
47	4005F810-51		Cover, Rear Wire				$ 248.98
48	4005F807-51		Cover, Burner Box (dual Ring)		Appelez-nous	-
NI	WP7002P451-60		Insulation, Flue   (Replaces: 7002P451-60)				$ 75.87
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P471-60		Insulation, Drawer		Appelez-nous	-
NI	7002P078-60		Insulation, Oven P1/p3k		Appelez-nous	-
NI	7002P474-60		Insulation, Front Frame		Appelez-nous	-
NI	7002P443-60		Insulation, Lower Sides				$ 41.31
