01 - Cooktop Parts
02 - Chassis Parts
03 - Manifold Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

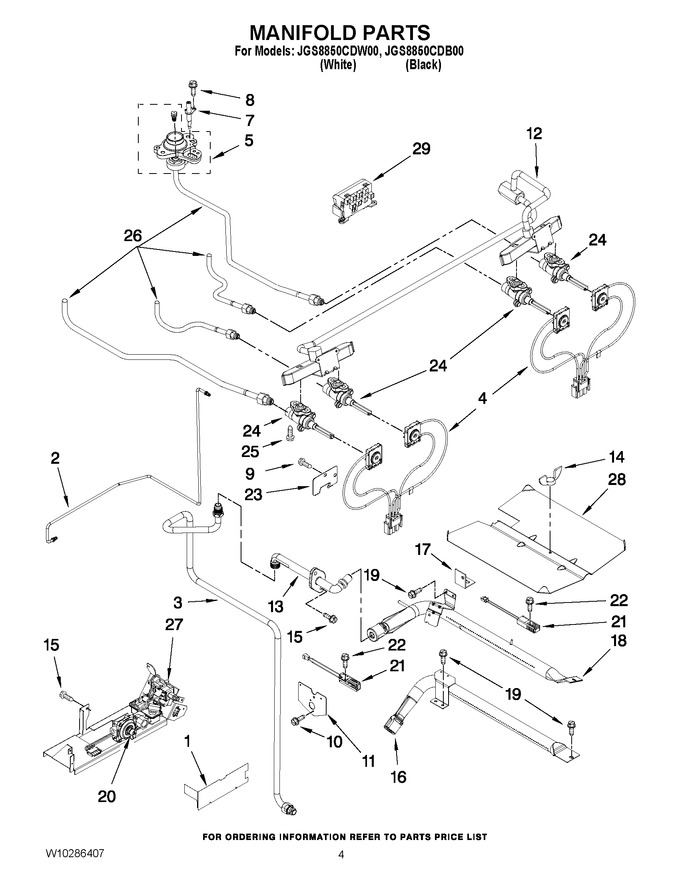

| 1 | 4005F638-51 | Cover, Bnr Valve |
|
- | |||||
| 2 | 7506P489-60 | Tubing, Gas Supply |
|
$ 35.75 | |||||
| 3 | 7506P536-60 | Tube, Broil |
|
- | |||||
| 4 | WP74011648 | Harness, Valve Includes Switches (rf/rr) (Replaces: 7450P004-60) |
|
Immediately | $ 221.22 | ||||
| 4 | WP74011647 | Harness, Valve Includes Switches (lf/lr) (Replaces: 7450P003-60) |
|
$ 221.21 | |||||
| 5 | WP7527P002-60 | Orifice, Holder (9.2k, Rr) (Replaces: 7527P002-60) |
|
$ 81.00 | |||||
| 5 | 74009553 | Orifice, Holder (5k,lr) (Replaces: 7527P042-60) |
|
$ 83.63 | |||||
| 5 | WP7527P004-60 | Orifice, Holder (16k,rf) (Replaces: 7527P004-60) |
|
$ 81.00 | |||||
| 5 | WP7527P061-60 | Orifice, Holder (dual Burner, Lf) (Replaces: 7527P061-60) |
|
$ 107.65 | |||||
| 7 | WP74009336 | Ignitor (Replaces: 7432P121-60) |
|
Immediately | $ 27.00 | ||||
| 8 | WP8273062 | Screw, Ignitor (Replaces: 7101P606-60) |
|
Immediately | $ 7.91 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.95 | |||||
| 10 | WP3387230 | Screw (Replaces: 7101P502-60) |
|
Immediately | $ 8.54 | ||||
| 11 | 3605F269-45 | Plate, Broil Fitting |
|
- | |||||
| 12 | 7513P473-60 | Pipe,manifold |
|
$ 343.13 | |||||
| 13 | WP74010901 | Fitting, Broil (Replaces: 7507P407-60) |
|
$ 83.65 | |||||
| 14 | 7103P030-60 | Nut, Wing |
|
$ 7.08 | |||||
| 15 | W11846982 | Screw (Replaces: 7101P676-60) |
|
- | |||||
| 16 | 7505P254-60 | Burner, Bake |
|
- | |||||
| 17 | 3807F480-45 | Support, Bake Bnr |
|
$ 17.01 | |||||
| 18 | 7505P293-60 | Burner, Broil |
|
$ 89.91 | |||||
| 19 | W11682789 | Screw (Replaces: 7101P360-60) |
|
Immediately | $ 12.95 | ||||
| 20 | WP74006035 | Valve/regulator (Replaces: 7510P079-60) |
|
$ 294.05 | |||||
| 21 | 74007498 | Ignitor (bake/broil) (Replaces: 7432P106-60) |
|
Immediately | $ 87.11 | ||||
| 22 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.77 | |||||
| 23 | 4005F421-45 | Cover,ignitor Wire |
|
- | |||||
| 24 | 7502P471-60 | Valve, Top Burner (rr 9.2k) |
|
- | |||||
| 24 | 7502P493-60 | Valve, Top Burner (lf (dual)) |
|
$ 152.67 | |||||
| 24 | 7502P470-60 | Valve, Top Burner (lr 5k) |
|
- | |||||
| 24 | 7502P548-60 | Valve, Top Burner (rf 16k) |
|
- | |||||
| 25 | 7101P639-60 | Support, Screw |
|
$ 5.53 | |||||
| 26 | 7506P469-60 | Tube, Burner (tubing, Inner Dual) |
|
$ 8.36 | |||||
| 26 | 7506P445-60 | Tube, Burner (rf) |
|
$ 8.76 | |||||
| 26 | 7506P447-60 | Tube, Burner (rr) |
|
$ 10.22 | |||||
| 26 | 7506P448-60 | Tube, Burner (lr) |
|
$ 83.70 | |||||
| 26 | 7506P470-60 | Tube, Burner (tubing, Outer Dual) |
|
$ 8.84 | |||||
| 27 | WP7501P232-60 | Valve, Safety (Replaces: 7501P232-60) |
|
Immediately | $ 336.58 | ||||
| 28 | 3601F239-45 | Baffle, Bake |
|
- | |||||
| 28 | 3601F307-45 | Baffle, Broil |
|
$ 200.26 | |||||
| 29 | WPW10475147 | Spark Module (Replaces: 7431P038-60) |
|
Immediately | $ 238.24 | ||||
| NI | W10258120 | Spuds, Lp Gas |
|
$ 187.02 |
