SELECT A DIAGRAM

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts

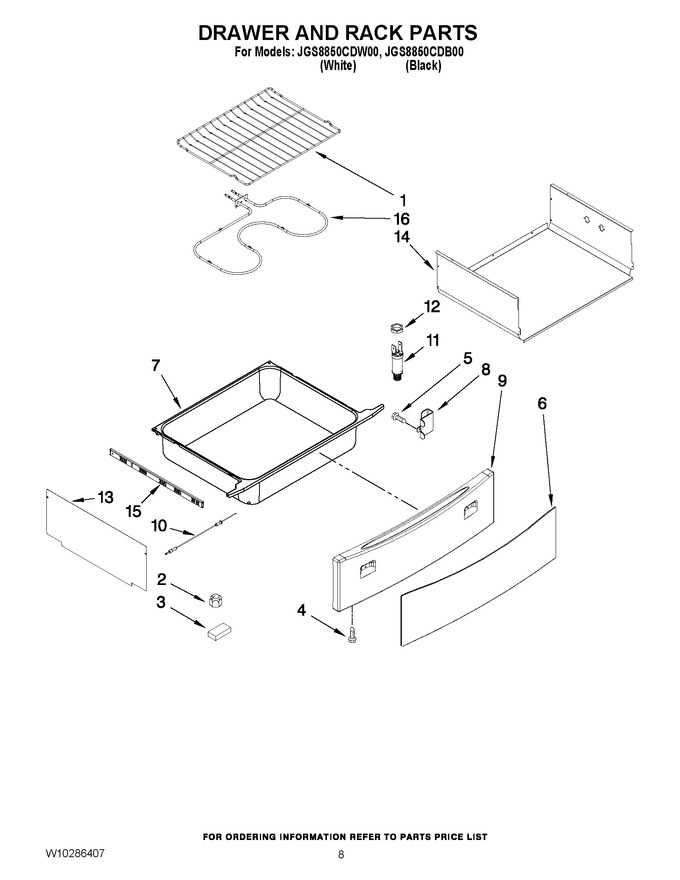

05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7801P173-60		Rack, Oven				$ 55.72
2	WPW10131078		Nut, Locking   (Replaces: 7103P139-60)				$ 4.44
3	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 10.53
4	W11233072		Screw, Panel   (Replaces: 7101P338-60)			Immediately	$ 14.02
5	W11347848		Screw   (Replaces: 7101P376-60)				$ 13.55
6	7922P057-60		Glass Assembly (drawer) (black)		Appelez-nous	-
6	7922P058-60		Glass Assembly (drawer) (white)				$ 86.39
7	3405W043-19		Drawer, Warming				$ 177.18
8	3801F887-51		Bracket, Drawer				$ 8.32
9	2416F086-71		Panel, Drawer (white)				$ 126.90
9	WP2416F086-70		Panel, Drawer (black)   (Replaces: 2416F086-70)				$ 228.09
10	WP7430P038-60		Probe, Meat   (Replaces: 7430P038-60)				$ 143.67
11	7408P086-60		Receptacle, Meat Probe Jack				$ 33.43
12	7103P177-60		Nut		Appelez-nous	-
13	3604F435-51		Shield Warming Drawer		Appelez-nous	-
14	2206F087-45		Body, Warm Drawer				$ 78.16
15	WPW10293200		Glide, Drawer   (Replaces: W10293200)				$ 108.50
16	7406P294-60		Element, Warmer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
