Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10253463 Installation Instructions Appelez-nous -
1 W10235694 Wiring Diagram Appelez-nous -
1 W10235527 Use & Care Guide Appelez-nous -
1 8106P068-60 Card, Flow Tester Special Order $ 6.65

1 9762761 Tips, Safe Cooking (english) Appelez-nous -
1 W10065852 Tips, Safe Cooking (french) Appelez-nous -
2 W10235815 Top, Main (frost White) Special Order $ 470.05

2 W10235921 Top, Main (black) Special Order $ 610.39

3 WP8273062 Screw   (Replaces: 7101P606-60) In-Stock Immediately $ 7.91

4 7504P204-60 Cap, Burner (black (right Front)) Appelez-nous -
4 WP8284669 Cap, Burner (black (right Rear))   (Replaces: 7504P202-60) In-Stock Immediately $ 75.59

4 7504P165-60 Cap, Burner (black (left Rear)) Appelez-nous -
5 7505P339-60 Assembly, Burner (right Rear) Special Order $ 57.66

5 7505P349-60 Assembly, Burner (left Front) Appelez-nous -
5 74007736 Assembly, Burner (right Front)   (Replaces: 7505P306-60) In-Stock Immediately $ 117.07

5 74007735 Assembly, Burner (left Rear)   (Replaces: 7505P305-60) In-Stock Immediately $ 114.18

6 3601F221-45 Baffle,vent Cover Special Order $ 28.30

7 WP74009336 Ignitor, Cooktop   (Replaces: 7432P121-60) In-Stock Immediately $ 27.00

8 3424F039-09 Bowl, Dual Special Order $ 14.11

9 4005F789-09 Cover, Trim Special Order $ 109.65

10 7518P338-60 Grate (black (left)) Appelez-nous -
10 7772P055-60 Grate (black (center)) Appelez-nous -
10 7518P332-60 Grate (black (right)) Special Order $ 123.57

11 WP7101P485-60 Screw, Anti Tip   (Replaces: 7101P485-60) Special Order $ 30.72

12 74010860 Locator, Grate   (Replaces: 8008P075-60) Special Order $ 10.57

13 3801F681-45 Bracket, Orifice Special Order $ 7.82

14 7724P200-60 Cover, Vent Special Order $ 88.44

15 WP3801F656-51 Bracket, Anti-tip   (Replaces: 3801F656-51) In-Stock Immediately $ 6.11

16 7504P243-60 Black Cap, Burner (outer) (left Front) Appelez-nous -
17 7504P242-60 Black Cap, Burner (inner) (left Front) Appelez-nous -

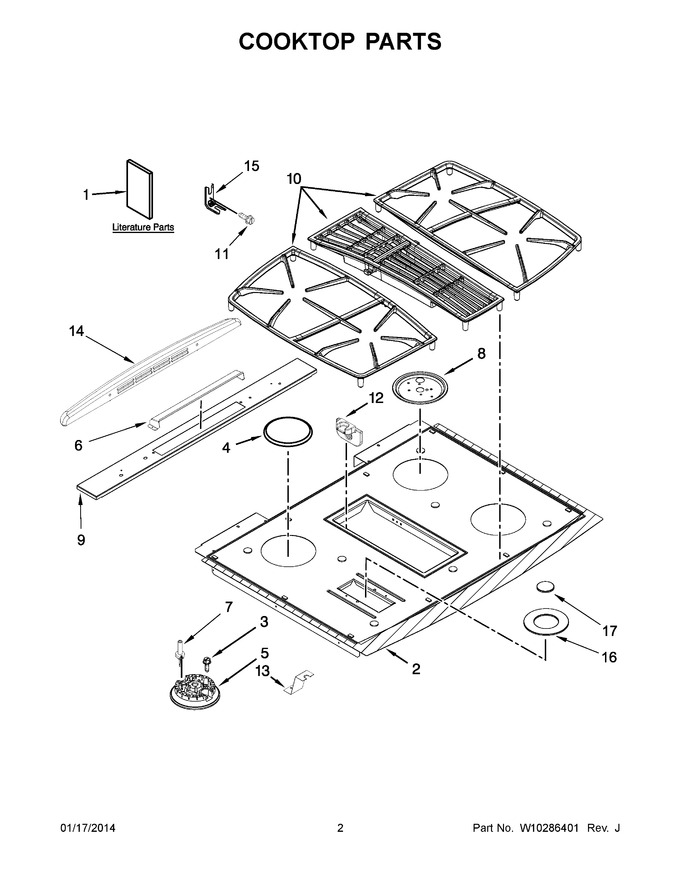

    View Diagram in Separate Window     Print Icon   Print Part List
