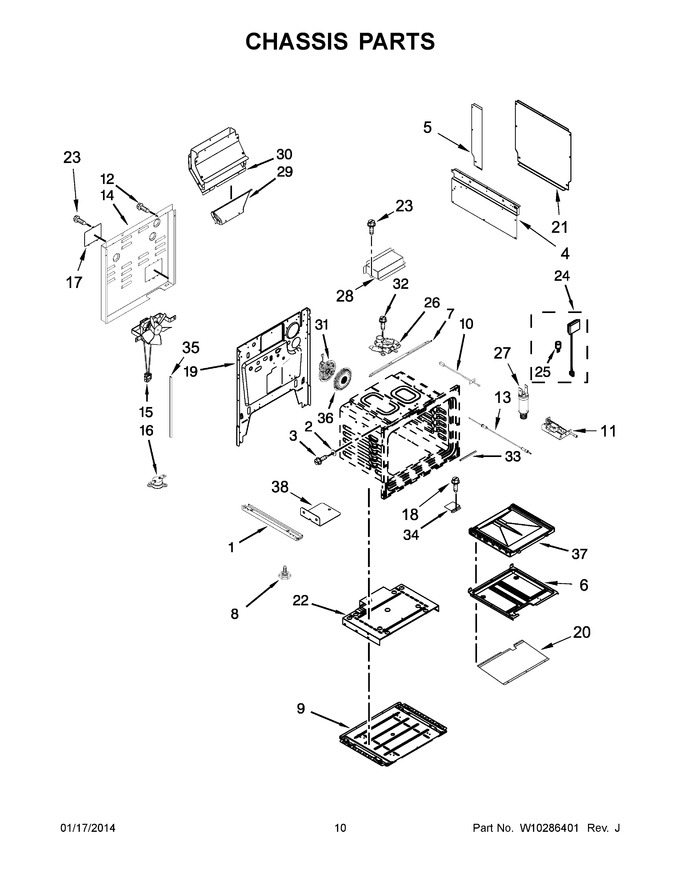

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4020W035-80		Pedestal, Bottom				$ 112.82
2	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 7.86
3	7101P604-60		Screw		Appelez-nous	-
4	2618F206-51		Panel, Shield (right)				$ 135.68
4	2618F202-51		Panel, Shield (left)		Appelez-nous	-
5	3604F433-51		Shield, Side				$ 31.44
6	3401F091-45		Pan, Bake				$ 82.36
7	3801F886-51		Bracket, Glass				$ 38.25
8	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 7.19
9	W10271711		Pedestal, Base				$ 144.40
10	12001655		Probe, Short   (Replaces: 7430P041-60)			Immediately	$ 45.57
11	WP7450P108-60		Assembly, Light Switch   (Replaces: 7450P109-60)			Immediately	$ 153.60
12	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
13	WP7430P038-60		Probe, Meat   (Replaces: 7430P038-60)				$ 143.67
14	4005F810-51		Cover, Bottom Wire				$ 248.98
15	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 318.60
16	7450P030-60		Switch, Limit			Immediately	$ 96.95
17	4005F612-51		Panel, Access				$ 46.13
18	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.77
19	3804F313-51		Back, Main		Appelez-nous	-
20	3804F315-51		Retainer, Bottom Insulation		Appelez-nous	-
21	3604F416-51		Shield, Lower				$ 59.21
22	4005F815-51		Cover, Bottom Insulation		Appelez-nous	-
23	WP4159193		Screw   (Replaces: 7101P336-60)				$ 4.77
24	7407P180-60		Assembly, Light		Appelez-nous	-
25	WP74009925		Bulb, Oven   (Replaces: 899138-001)			Immediately	$ 22.63
26	74010819		Assembly, Latch   (Replaces: 8002P089-60)				$ 360.32
27	7408P086-60		Receptacle, Meat Probe				$ 33.43
28	4005F750-51		Cover, Door Lock		Appelez-nous	-
29	8026P092-60		Extension, Upper Vent				$ 43.91
30	8407P013-60		Assembly, Flue				$ 173.03
31	W10206590		Fan, Convection				$ 225.55
32	74003975		Screw   (Replaces: 7101P375-60)				$ 13.36
33	7201P143-60		Gasket, Top				$ 16.81
34	4005F736-45		Cover, Burner Opening				$ 7.37
35	W10183566		Guard, Edge		Appelez-nous	-
36	3605F350-19		Cover		Appelez-nous	-
37	2205F051-19		Bottom, Lower Oven				$ 219.31
38	8405P073-60		Bracket, Oven Mount		Appelez-nous	-
NI	7002P479-60		Insulation, Wrap		Appelez-nous	-
NI	7002P447-60		Insulation, Back		Appelez-nous	-
