SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Blower Unit Parts


05 - Manifold Parts


06 - Chassis Parts

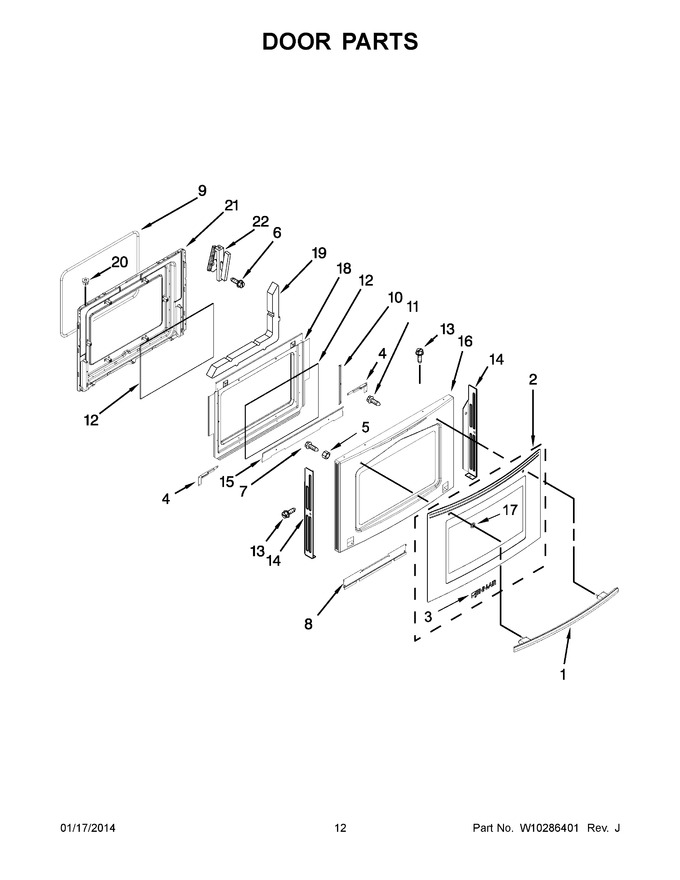

07 - Door Parts


08 - Drawer And Rack Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10223163		Handle, Door (black)		Appelez-nous	-
1	W10223164		Handle, Door (white)				$ 274.32
1	W10223165		Handle, Door (oiled Bronze)		Appelez-nous	-
2	W10272330		Glass, Door (white)				$ 265.49
2	W10235391		Glass, Door (oiled Bronze)		Appelez-nous	-
2	WPW10272332		Glass, Door (black)   (Replaces: W10272332)				$ 315.91
3	W10214169		Nameplate (oiled Bronze)				$ 53.42
3	W10190723		Nameplate (white)   (Replaces: W10190708)				$ 111.95
3	WPW10214168		Nameplate (black)   (Replaces: W10190709)				$ 85.95
4	3804F308-51		Retainer, Glass (left)		Appelez-nous	-
4	3804F307-51		Retainer, Glass (right)				$ 109.75
5	WP3400029		Nut   (Replaces: 7103P176-60)			Immediately	$ 8.19
6	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	8020P074-60		Support, Glass		Appelez-nous	-
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 86.23
10	3801F886-51		Bracket, Glass				$ 38.25
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
12	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 180.59
13	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
14	3608F138-70		Black				$ 66.28
15	3604F418-51		Shield				$ 77.46
16	W10234011		Frame, Door (oiled Bronze)		Appelez-nous	-
16	3603F075-71		Frame, Door (white)				$ 390.67
16	3603F075-70		Frame, Door (black)				$ 187.06
17	7109P082-60		Washer		Appelez-nous	-
18	3601F373-51		Baffle, Oven Door Window				$ 284.93
19	7002P246-60		Insulation, Oven Door				$ 58.49
20	WP74001574		Nut, Snap (black)   (Replaces: 7103P141-60)			Immediately	$ 11.74
20	WP7103P114-60		Nut, Snap (white)   (Replaces: 7103P039-60)				$ 11.69
21	2402W312-19		Lining, Door				$ 144.50
22	74011475		Hinge, Door   (Replaces: 7106P143-60)			Immediately	$ 130.52

    View Diagram in Separate Window       Print Part List
