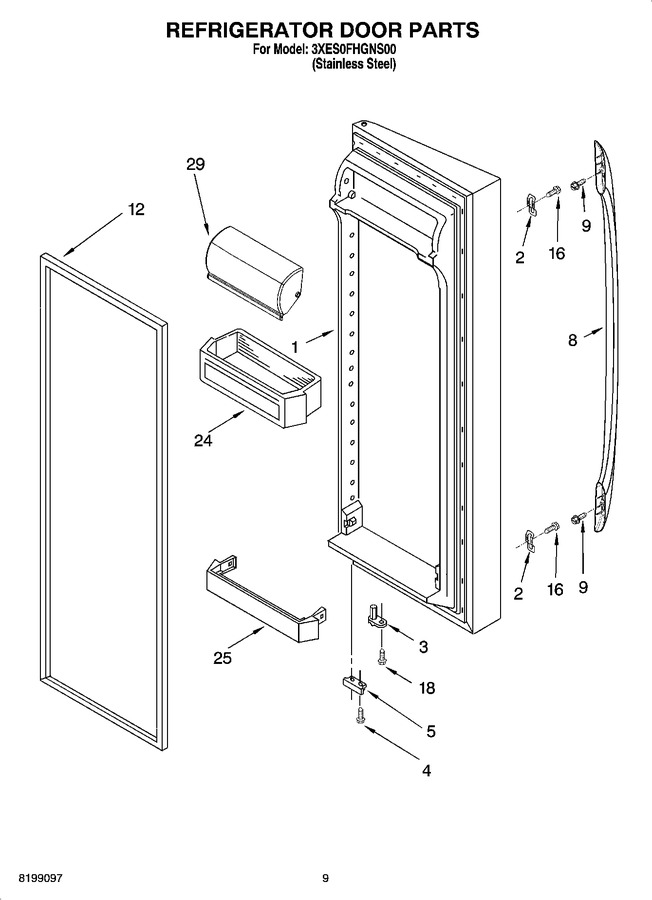

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2305969SB | Refrigerator Door |
|
- | |||||
| 2 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 3 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 4 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 5 | 2200082B | Bracket, Door Stop |
|
$ 42.44 | |||||
| 8 | 2305993B | Handle |
|
$ 100.25 | |||||
| 9 | 8533920 | Screw |
|
$ 5.27 | |||||
| 12 | 2159081 | Door Gasket, Magnetic (Replaces: 2221311) |
|
$ 335.58 | |||||
| 16 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 18 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 24 | WP2203828 | Door Bin (3) (Replaces: 2203828) |
|
$ 100.30 | |||||
| 25 | WP2156022 | Trim, Door Shelf (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 29 | WP2256101 | Compartment Door (Replaces: 2256101) |
|
Immediately | $ 89.42 |
