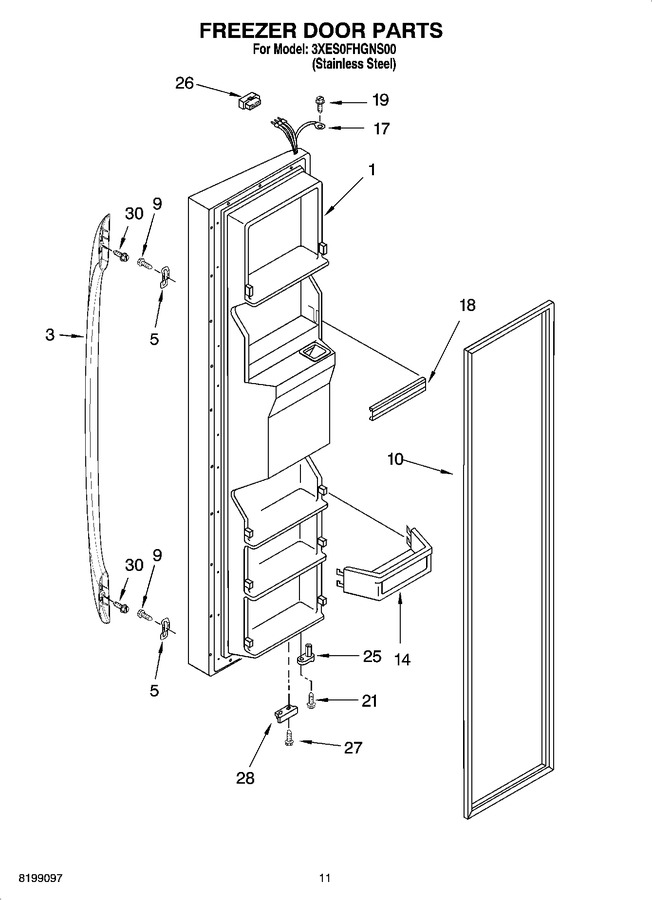

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2308015SB		Freezer Door		Appelez-nous	-
3	2305993B		Handle				$ 100.25
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
9	WP489491		Screw   (Replaces: 489491)				$ 6.95
10	2159080		Door, Gasket Magnetic   (Replaces: 2221312)				$ 310.39
14	2308002		Trivet (4)		Appelez-nous	-
17	2187272		Harness, Door		Appelez-nous	-
18	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
19	WP489128		Screw   (Replaces: 8281149)				$ 10.88
21	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
25	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
26	WP2154473		Housing Connector   (Replaces: 2154473)				$ 23.65
27	WP489483		Screw   (Replaces: 489420)				$ 10.87
28	2200082B		Bracket, Door Stop				$ 42.44
30	8533920		Screw				$ 5.27
