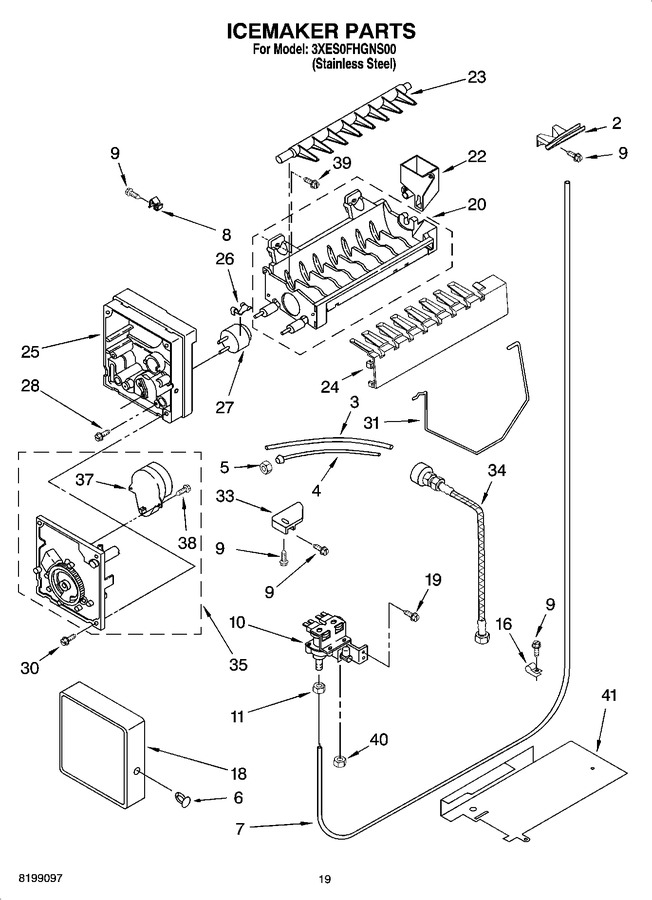

11 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W11505385		Chute, Water   (Replaces: 2209774)				$ 33.64
3	8201597		Tube, Filter Inlet   (Replaces: 2186492)			Immediately	$ 77.02
4	W11496481		Tube, Filter Outlet   (Replaces: 2186493)			Immediately	$ 35.42
5	2200083		Nut, Compression		Appelez-nous	-
6	489115		Clip				$ 5.51
7	W10823511		Tube Water   (Replaces: 2181943)			Immediately	$ 32.41
8	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
9	WP489478		Screw   (Replaces: 489478)				$ 7.75
10	2204400		Valve, Solenoid		Appelez-nous	-
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
16	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.18
18	WPW10289690		Cover   (Replaces: 2174183)			Immediately	$ 8.40
19	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
20	628282		Mold & Heater Assembly (also Order) 542638 Silicone Grease		Appelez-nous	-
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 2182124)				$ 86.05
25	WP2195914		Support   (Replaces: 2195914)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)				$ 109.18
28	8533917		Screw				$ 13.37
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	W11807379		Shut Off Arm   (Replaces: 2209675)			Immediately	$ 60.20
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 32.17
34	2221332		European Water Connection Tube		Appelez-nous	-
35	2187134		Module Assembly (includes Items 37 & 38)		Appelez-nous	-
37	2187135		Motor		Appelez-nous	-
38	489136		Screw				$ 10.29
39	WP488163		Screw   (Replaces: 488208)				$ 7.54
40	1129179		Nut, Compression		Appelez-nous	-
41	2256178		Heat Shield   (Replaces: 2182414)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	350956		Enamel, Almond (12 Oz. Spray Can)				$ 51.44
	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.07
	2209778		Ice Container Assembly		Appelez-nous	-
	2217192		Cleaner, (stainless Steel)		Appelez-nous	-
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	N/A		Torx Screw Wrench		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
