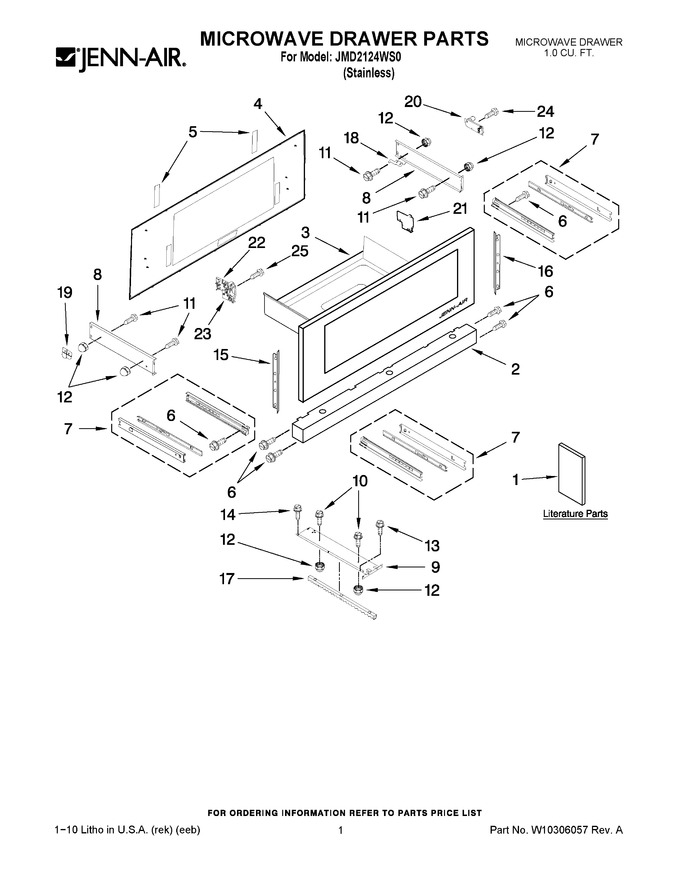

01 - Microwave Drawer Parts


02 - Microwave Control Panel Parts


03 - Microwave Oven Cavity Parts


04 - Microwave Latch Board Parts


05 - Microwave Interior Parts


06 - Base Plate And Convection Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10244166		U & C Guide		Appelez-nous	-
1	W10244167		Cook Guide Label		Appelez-nous	-
1	W10244170		Tech Sheet		Appelez-nous	-
1	W10244169		Installation, Instructions		Appelez-nous	-
2	W10278513		Grill-vent				$ 93.30
3	W10278157		Door		Appelez-nous	-
4	W10278510		Cover, Choke		Appelez-nous	-
5	W10278736		Cover, Support		Appelez-nous	-
6	8205835		Screw		Appelez-nous	-
7	W10278722		Slide, Drawer				$ 149.64
8	W10278726		Support, Door		Appelez-nous	-
9	W10278735		Support, Door				$ 146.84
10	W10278743		Screw		Appelez-nous	-
11	8185369		Screw		Appelez-nous	-
12	W10278889		Nut		Appelez-nous	-
13	W10278647		Screw		Appelez-nous	-
14	W10278632		Screw		Appelez-nous	-
15	W10278548		Trim, Left		Appelez-nous	-
16	W10278549		Trim, Right		Appelez-nous	-
17	W10278539		Gear, Door				$ 107.78
18	W10278519		Acuator, Right		Appelez-nous	-
19	W10278536		Acuator, Left		Appelez-nous	-
20	W10278517		Assembly, Gear				$ 343.56
21	W10278648		Latch, Right				$ 9.76
22	W10278649		Latch, Left				$ 10.28
23	W10278180		Lever, Switch				$ 86.24
24	W10278744		Screw		Appelez-nous	-
25	W11233072		Screw   (Replaces: 4174784)			Immediately	$ 13.25
