Diagram for 01 - Microwave Drawer Parts
01 - Microwave Drawer Parts

Diagram for 02 - Microwave Control Panel Parts
02 - Microwave Control Panel Parts

Diagram for 03 - Microwave Oven Cavity Parts
03 - Microwave Oven Cavity Parts

Diagram for 04 - Microwave Latch Board Parts
04 - Microwave Latch Board Parts

Diagram for 05 - Microwave Interior Parts
05 - Microwave Interior Parts

Diagram for 06 - Base Plate And Convection Parts
06 - Base Plate And Convection Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10278021 Transformer Special Order $ 343.02

2 W11596034 Magnetron   (Replaces: W10278022) In-Stock Immediately $ 382.07

3 WPW10278026 Supply, Power   (Replaces: W10278026) Special Order $ 271.93

4 W10278025 Holder, Control Special Order $ 47.76

5 W10687898 Capacitor, Hv   (Replaces: W10278135) Special Order $ 204.83

6 4313114 Bracket, Capacitor Appelez-nous -
7 8205835 Screw Appelez-nous -
8 W11397156 Switch   (Replaces: 8185355) In-Stock Immediately $ 64.17

9 W10278744 Screw Appelez-nous -
10 W10278737 Guide-air Appelez-nous -
11 W10278891 Screw Appelez-nous -
12 W10278177 Harness, Wire Appelez-nous -
13 W11331002 Duct, Magnetron   (Replaces: W10278107) Appelez-nous -
14 W10278173 Motor-fan Appelez-nous -
15 W10278175 Duct, Fan Appelez-nous -
16 W10278178 Cord-power Appelez-nous -
17 W10278538 Relay, Power Special Order $ 147.50

18 W10278540 Holder, Relay Appelez-nous -
19 8185369 Screw Appelez-nous -
20 W10278631 Bracket, Switch Right Appelez-nous -
21 W10278518 Bracket, Switch Left Appelez-nous -

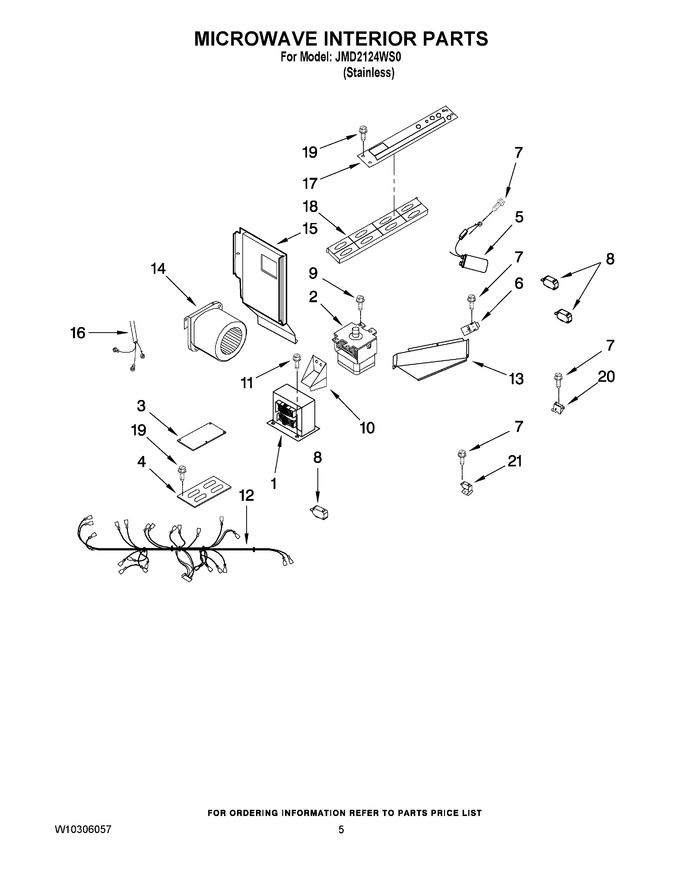

    View Diagram in Separate Window     Print Icon   Print Part List
