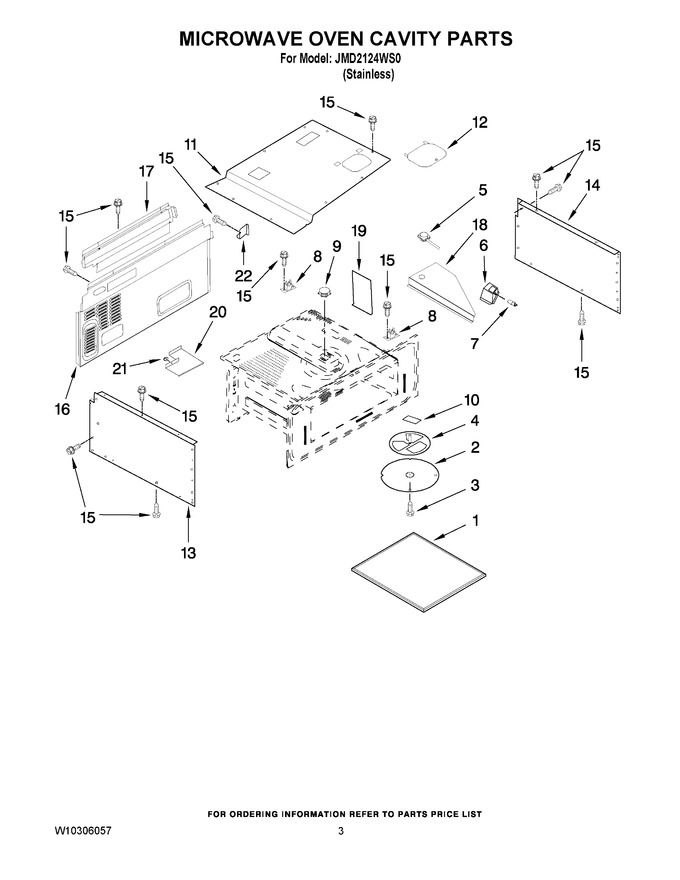

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10278509 | Tray, Oven |
|
$ 145.67 | |||||
| 2 | W10278118 | Cover, Stirrer |
|
$ 93.29 | |||||
| 3 | W10278120 | Clip, Cover |
|
- | |||||
| 4 | W10278159 | Stirrer, Assembly |
|
$ 101.09 | |||||
| 5 | W10278023 | Assembly, Sensor |
|
$ 163.26 | |||||
| 6 | W10278030 | Housing, Lamp |
|
- | |||||
| 7 | W10278184 | Assembly, Lamp |
|
$ 73.03 | |||||
| 8 | W10825099 | Cut-out, Thermal (Replaces: W10278176) |
|
$ 84.19 | |||||
| 9 | W10278515 | Motor, Stirrer |
|
$ 162.91 | |||||
| 10 | W10278133 | Cover, Lamp |
|
- | |||||
| 11 | W10278745 | Cover, Top |
|
- | |||||
| 12 | W10278551 | Panel, Top |
|
- | |||||
| 13 | W10278885 | Panel, Left |
|
- | |||||
| 14 | W10278886 | Panel, Right |
|
- | |||||
| 15 | 8205835 | Screw |
|
- | |||||
| 16 | W10278031 | Cover-rear |
|
- | |||||
| 17 | W10278114 | Duct, Exhaust |
|
- | |||||
| 18 | W10278113 | Duct, Sensor |
|
- | |||||
| 19 | W10278116 | Duct, Exhaust |
|
- | |||||
| 20 | W10278545 | Cover, Magnetron |
|
- | |||||
| 21 | W10278547 | Tie-wire |
|
- | |||||
| 22 | W10278887 | Cover, Air |
|
- |
