SELECT A DIAGRAM

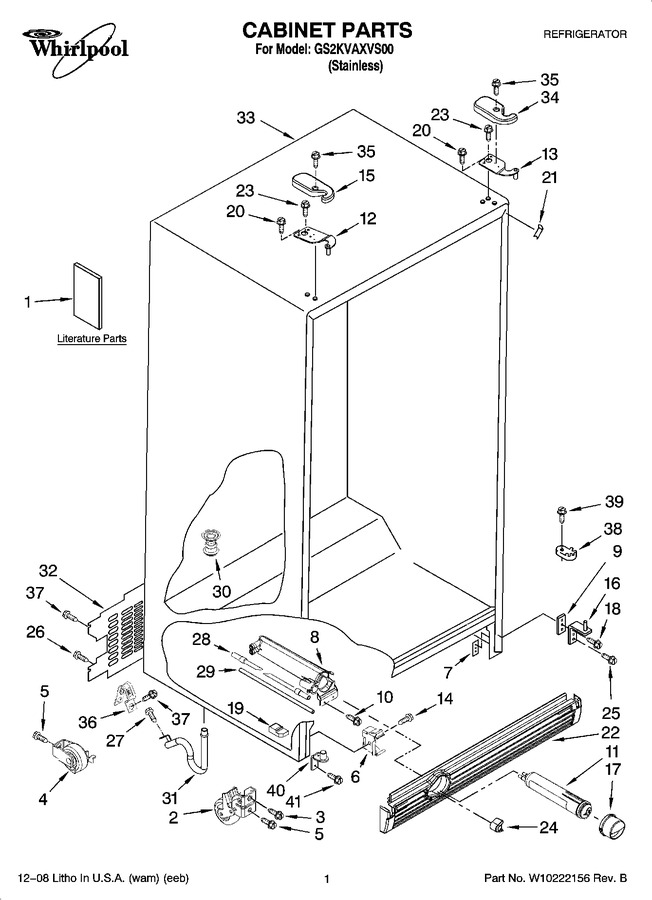

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167117		Use & Care Guide		Appelez-nous	-
1	W10181781		Service & Wiring Sheet		Appelez-nous	-
1	W10158933		Energy Label		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 14.23
8	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
9	2209697		Shim				$ 41.25
10	WP489500		Screw (2)   (Replaces: 489500)				$ 7.78
11	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
12	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
13	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
14	WP489128		Screw   (Replaces: 488500)				$ 10.88
15	WP2203407B		Hinge Cover (fc) (black)   (Replaces: 2203407B)				$ 19.52
16	8201707		Bottom Hinge (rc)   (Replaces: 2217075)				$ 88.90
17	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
18	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
19	2260519		Block, Housing Support		Appelez-nous	-
20	3400858		Screw		Appelez-nous	-
21	W11252732		Filler, Wrapper (black)   (Replaces: 2201017)				$ 12.45
22	W10184880		Grille (black)				$ 58.21
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
24	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
25	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.76
26	WP488488		Screw   (Replaces: 489290)				$ 7.68
27	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
28	8201597		Tube, Filter Inlet   (Replaces: 2319867)			Immediately	$ 77.02
29	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
30	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
31	W11512417		Extension Tube   (Replaces: 2304937)				$ 34.79
32	WP2188756		Cover, Unit   (Replaces: 2188734)				$ 141.67
34	WP2203408B		Hinge Cover (rc) (black)   (Replaces: 2203408B)				$ 18.63
35	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
36	549193		Clamp-service Cord				$ 13.39
37	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
38	WPW10329686		Door Closer (rc) Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
39	WP489483		Screw (2)   (Replaces: 489483)				$ 10.87
40	2323833		Bottom Hinge (fc)		Appelez-nous	-
41	W11778262		Door Closer, Fc   (Replaces: 2223751)				$ 11.08

    View Diagram in Separate Window       Print Part List
