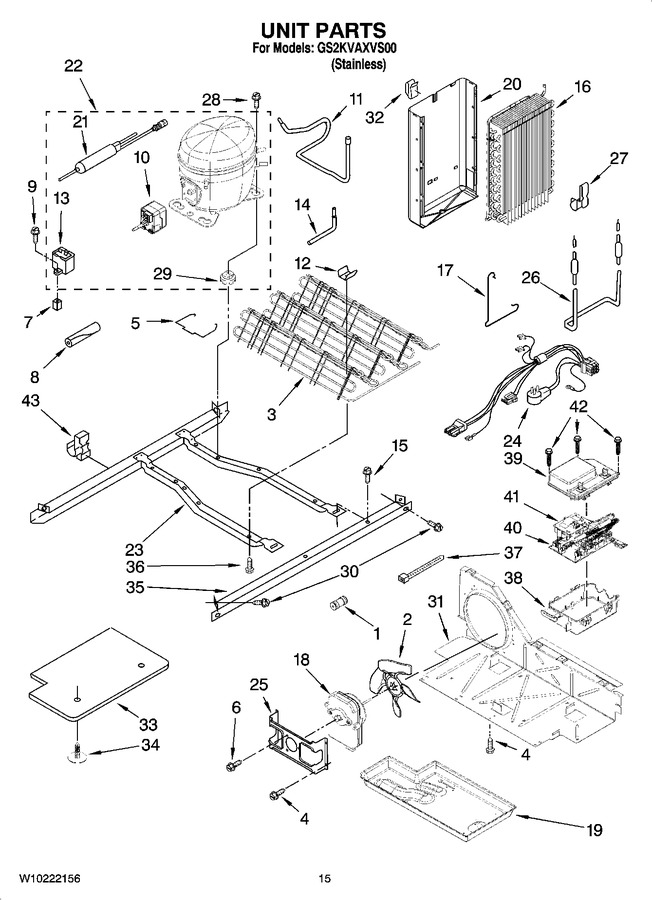

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10334458 | Connector (Replaces: 2320322) |
|
$ 22.67 | |||||
| 2 | W10156818 | Fan, Blade (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10121487) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | 2212996 | Bale Strap (Replaces: 2255113) |
|
$ 12.72 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | 509812 | Grommet |
|
- | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 10 | WP2188831 | Start Device Combination Relay & Overload (service) (Replaces: 2188831) |
|
$ 186.35 | |||||
| 11 | 2220642 | Tube Suction |
|
$ 232.67 | |||||
| 12 | W10683556 | Clip, Condenser (2) (Replaces: 2311725) |
|
$ 19.38 | |||||
| 13 | WP65889-4 | Capacitor (production) (Replaces: 2252799) |
|
Immediately | $ 61.14 | ||||
| 13 | WP65889-4 | Capacitor (service) (Replaces: 2255130) |
|
Immediately | $ 61.14 | ||||
| 14 | 2325478 | Process Tube |
|
- | |||||
| 15 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 17 | 2161324 | Clamp |
|
- | |||||
| 18 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 19 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 20 | WPW10194474 | Heat Shield (Replaces: W10194474) |
|
$ 125.51 | |||||
| 21 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 21 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 22 | W10355489 | Compressor (includes Items 10, 13, 21, & 29) (also Order 876765 Tube Kit) (Replaces: W10144769) |
|
$ 678.50 | |||||
| 23 | 2304903 | Unit Mounting Frame |
|
$ 244.68 | |||||
| 24 | WPW10291106 | Unit, Harness (includes Power Cord) (Replaces: 2310497) |
|
$ 277.79 | |||||
| 25 | WP2188874 | Fan, Motor Bracket (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 26 | WP2323197 | Heater, Defrost (Replaces: 2188174) |
|
Immediately | $ 123.25 | ||||
| 27 | 2161324 | Clip (2) |
|
- | |||||
| 28 | 876811 | Screw (4) (Replaces: 489373) |
|
$ 7.79 | |||||
| 29 | W11661108 | Grommet (4) (service) (Replaces: 2183042) |
|
$ 15.21 | |||||
| 29 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 30 | 489340 | Screw (5) |
|
- | |||||
| 31 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 101.20 | |||||
| 32 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 33 | W11115203 | Unit Cover, Bottom (Replaces: 2304898) |
|
$ 543.81 | |||||
| 34 | 489396 | Clip |
|
$ 11.26 | |||||
| 35 | WPW10196323 | Unit Mounting Rail (Replaces: W10196323) |
|
$ 124.89 | |||||
| 36 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 37 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 8.30 | |||||
| 38 | 2323186 | Control, Box |
|
$ 107.48 | |||||
| 39 | 2323188 | Box Cover |
|
- | |||||
| 40 | WPW10210789 | Electronic Control (Replaces: W10210789) |
|
$ 361.61 | |||||
| 41 | WPW10356039 | Control, Elek (Replaces: W10120821) |
|
Immediately | $ 377.04 | ||||
| 42 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 43 | W10812039 | Clip, Wire & Tube (Replaces: 2326941) |
|
$ 11.12 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | |||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 137.25 |
