SELECT A DIAGRAM

01 - Cabinet Parts

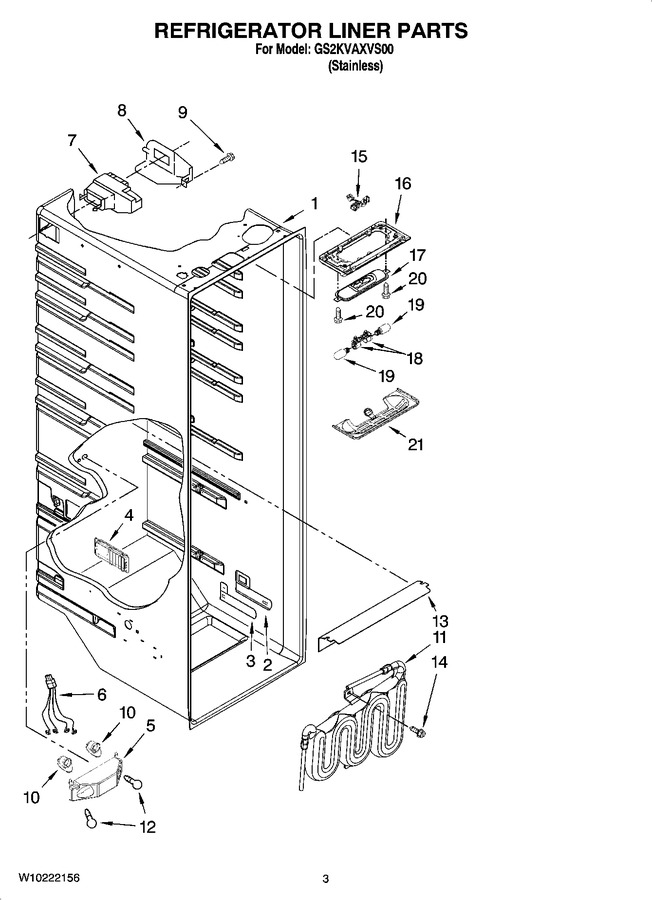

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Light				$ 62.54
6	2311637		Wire Harness, Crisper Light				$ 140.23
7	W10899382		Air Diffuser Assembly   (Replaces: W10128734)			Immediately	$ 191.85
8	W10128735		Air Diffuser Cover		Appelez-nous	-
9	W10759522		Screw   (Replaces: 486298)				$ 7.75
10	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
11	WPW10276792		Reservoir   (Replaces: W10204356)				$ 137.57
12	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30
13	2209769		Light Lens		Appelez-nous	-
14	488280		Screw (2)		Appelez-nous	-
15	2310527		Wire Assy - Rc Light		Appelez-nous	-
16	W10284481		Trim, Rc Light   (Replaces: W10221664)		Appelez-nous	-
17	2223680		Shield, Heat				$ 89.07
18	WPW10191429		Socket, Light   (Replaces: 2223857)				$ 8.38
19	WPA3073101		Bulb, Light   (Replaces: 2326255)			Immediately	$ 12.11
20	WP489478		Screw   (Replaces: 489478)				$ 7.75
21	2223506		Lens, Light				$ 47.17

    View Diagram in Separate Window       Print Part List
