01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)

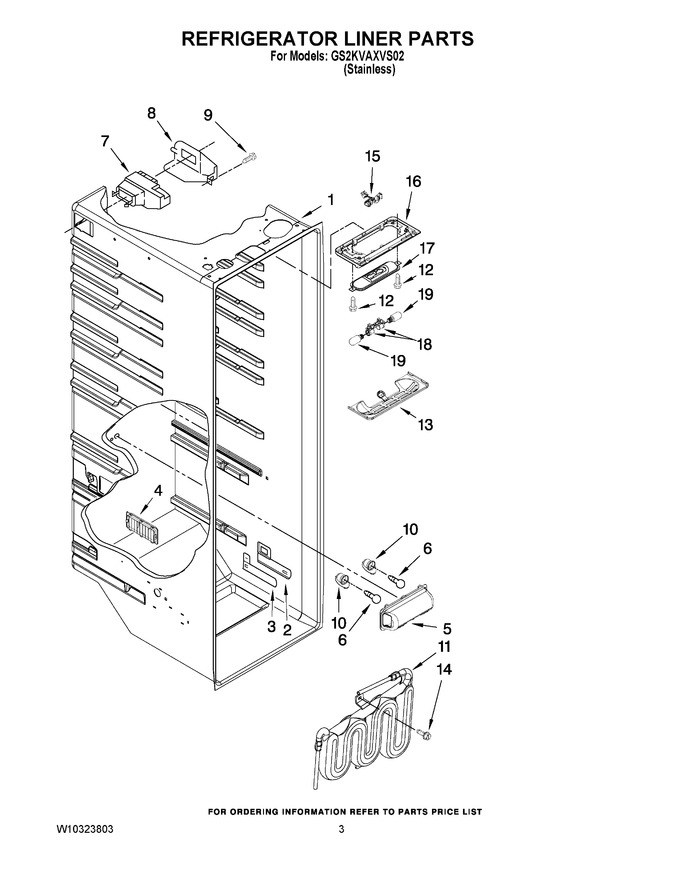

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	W11239891		Light Lens   (Replaces: W10166019)				$ 101.52
6	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30
7	W10899382		Air Diffuser Assembly   (Replaces: W10128734)				$ 201.44
8	W10128735		Air Diffuser Cover		Appelez-nous	-
9	W10759522		Screw   (Replaces: 486298)				$ 8.24
10	4387478		Socket   (Replaces: 2162085)			Immediately	$ 115.67
11	WPW10276792		Reservoir   (Replaces: W10204356)				$ 144.45
12	WP489478		Screw   (Replaces: 489478)				$ 8.18
13	2223506		Light Lens				$ 47.17
14	488280		Screw (2)		Appelez-nous	-
15	2310527		Wire Assy - Rc Light		Appelez-nous	-
16	W10284481		Trim, Rc Light   (Replaces: W10221664)		Appelez-nous	-
17	2223680		Shield, Heat				$ 93.52
18	WPW10191429		Socket, Light   (Replaces: 2223857)				$ 8.80
19	WPA3073101		Bulb, Light   (Replaces: 2326255)			Immediately	$ 12.72
