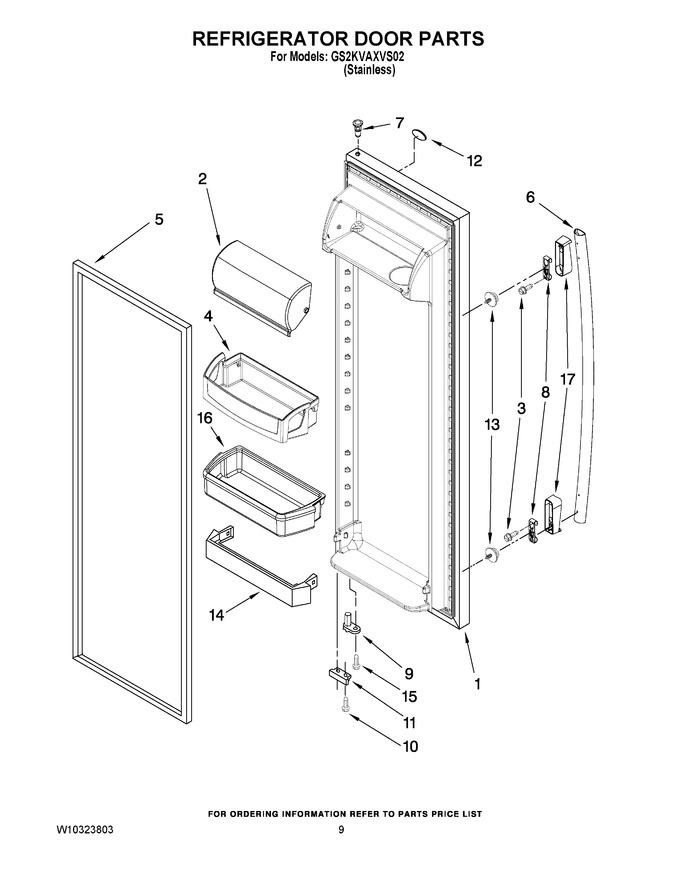

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10280713 | Refrigerator Door (includes Item 5) (stainless) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | W10267047 | Screw (4) (Replaces: W10201588) |
|
$ 13.47 | |||||
| 4 | 2223463 | Door Bin (1) |
|
- | |||||
| 5 | 2159081 | Door Gasket, Magnetic (black) (Replaces: 2309653) |
|
$ 335.58 | |||||
| 6 | WPW10257118K | Handle (includes No.3) (stainless/satina) (Replaces: W10257118) |
|
$ 196.99 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 8.15 | |||||
| 8 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 9 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 11 | 2200082 | Bracket, Door Stop (zinc) |
|
$ 5.83 | |||||
| 12 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 13 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 14 | WP2156022 | Trivet (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 15 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 16 | W10158506 | Door Bin |
|
$ 109.63 | |||||
| 17 | W10127772 | End Cap |
|
$ 49.75 |
