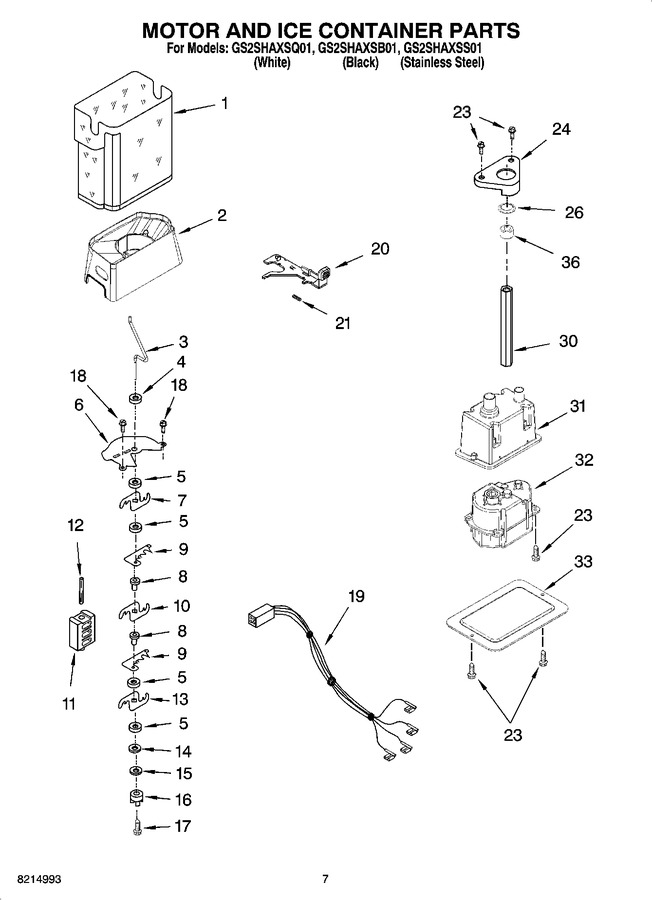

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2212302 | Ice Bin |
|
- | |||||
| 2 | 2255577 | Crusher Bin |
|
- | |||||
| 3 | 2258224 | Auger |
|
- | |||||
| 4 | 2258220 | Washer |
|
$ 8.02 | |||||
| 5 | WP1119007 | Spacer, Flat (Replaces: 1119007) |
|
$ 14.07 | |||||
| 6 | 2255461 | Cover, Crusher |
|
- | |||||
| 7 | W10278733 | Blade, Rotary (Replaces: 2257024) |
|
$ 86.67 | |||||
| 8 | WP1119005 | Spacer, Step (Replaces: 1119005) |
|
$ 11.18 | |||||
| 9 | 2257020 | Blade, Fixed |
|
$ 59.91 | |||||
| 10 | W10278732 | Blade, Rotary (Replaces: 2257023) |
|
$ 86.67 | |||||
| 11 | 2198602 | Block, Blade |
|
- | |||||
| 12 | 489229 | Roll Pin |
|
$ 46.16 | |||||
| 13 | W10278731 | Blade, Rotary (Replaces: 2257022) |
|
$ 86.54 | |||||
| 14 | 489235 | Washer, Plain |
|
$ 8.05 | |||||
| 15 | WP2198661 | Washer, Coupling (Replaces: 2198661) |
|
$ 10.90 | |||||
| 16 | W11629923 | Coupling (Replaces: 2188918) |
|
$ 33.63 | |||||
| 17 | WP8281164 | Screw (Replaces: 8281164) |
|
$ 10.79 | |||||
| 18 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 19 | W10683539 | Wire Harness, Idi Motor (Replaces: 2187725) |
|
$ 36.53 | |||||
| 20 | 2255578 | Latch, Bin |
|
- | |||||
| 21 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 7.19 | |||||
| 23 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 24 | WP2188919 | Holder (Replaces: 2188919) |
|
$ 7.19 | |||||
| 26 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.97 | ||||
| 30 | WP2188917 | Drive Shaft (Replaces: 2188916) |
|
$ 100.18 | |||||
| 31 | 2256154 | Enclosure, Motor |
|
$ 49.78 | |||||
| 32 | 2315547 | Dispenser, Motor |
|
- | |||||
| 33 | 2212305 | Cover |
|
- | |||||
| 36 | WP2315559 | Sleeve, Coupling (Replaces: 2315559) |
|
Immediately | $ 81.34 | ||||
| 100 | 2315938 | Ice Container (complete) |
|
- |
