SELECT A DIAGRAM
New Model Search:

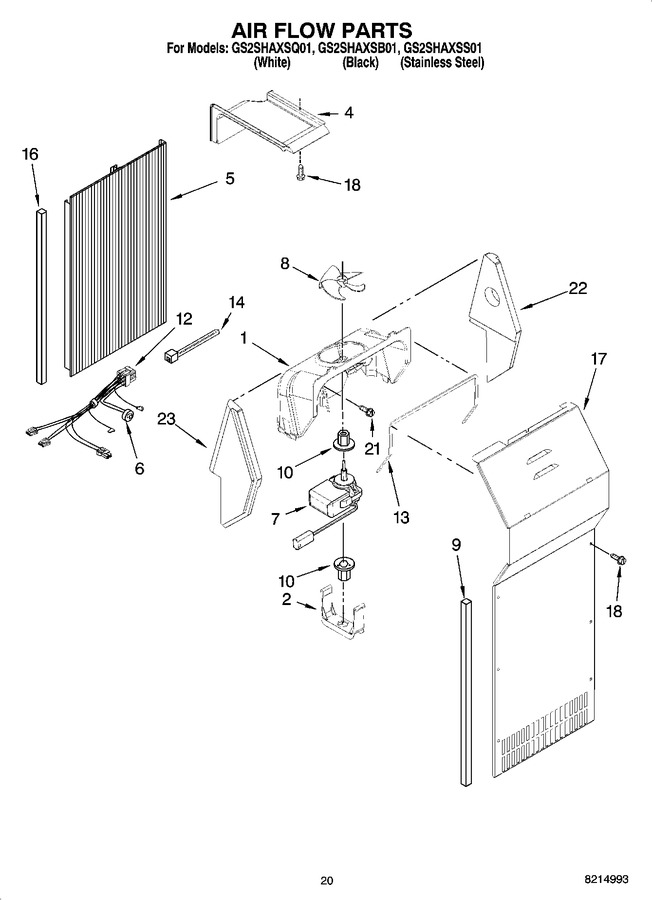

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11254898 | Fan Scroll (Replaces: 2182119) |
|
Immediately | $ 323.27 | ||||
| 2 | 2155590 | Retainer Fan Motor |
|
$ 5.83 | |||||
| 4 | 2313359 | Air Duct, Upper |
|
$ 104.97 | |||||
| 5 | 2212313 | Air Duct Freezer |
|
- | |||||
| 6 | WPW10225581 | Bi-metal, Defrost (Replaces: 2319914) |
|
Immediately | $ 50.77 | ||||
| 7 | 4389144 | Fan Motor (Replaces: 2162404) |
|
Immediately | $ 78.61 | ||||
| 8 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | WP2304241 | Gasket, Evaporator Cover (2) (Replaces: 2304241) |
|
Immediately | $ 82.80 | ||||
| 10 | WP2176759 | Fan Grommet (2) (Replaces: 2176759) |
|
$ 7.77 | |||||
| 12 | W11234406 | Harness, Fan Evaporator (includes 6) (Replaces: 2310240) |
|
$ 95.49 | |||||
| 13 | WP2155789 | Gasket, Fan Scroll (Replaces: 2155788) |
|
$ 7.79 | |||||
| 14 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 7.90 | |||||
| 16 | 4388500 | Gasket (Replaces: 2203875) |
|
$ 90.39 | |||||
| 17 | 2212314 | Cover, Evaporator (includes 9) |
|
- | |||||
| 18 | 4389654 | Screw (Replaces: 8281159) |
|
$ 13.89 | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 22 | 4388358 | Support, R.s (Replaces: 2203595) |
|
$ 31.16 | |||||
| 23 | 4388358 | Support, L.s (Replaces: 2203596) |
|
$ 31.16 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 8171357 | Paint, Pressurized Spray (12 Oz.) (graphite) |
|
$ 82.31 | ||||||
| 80051 | Paint, Touch-up (1/2oz.) (graphite) |
|
$ 7.64 | ||||||
| 799340 | Paint, Bulk (1qt.) (black) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 8171358 | Paint, Bulk (1qt.) (graphite) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| 2217192 | Cleaner, (stainless Steel) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 89.66 | ||||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 57.04 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 |
