SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

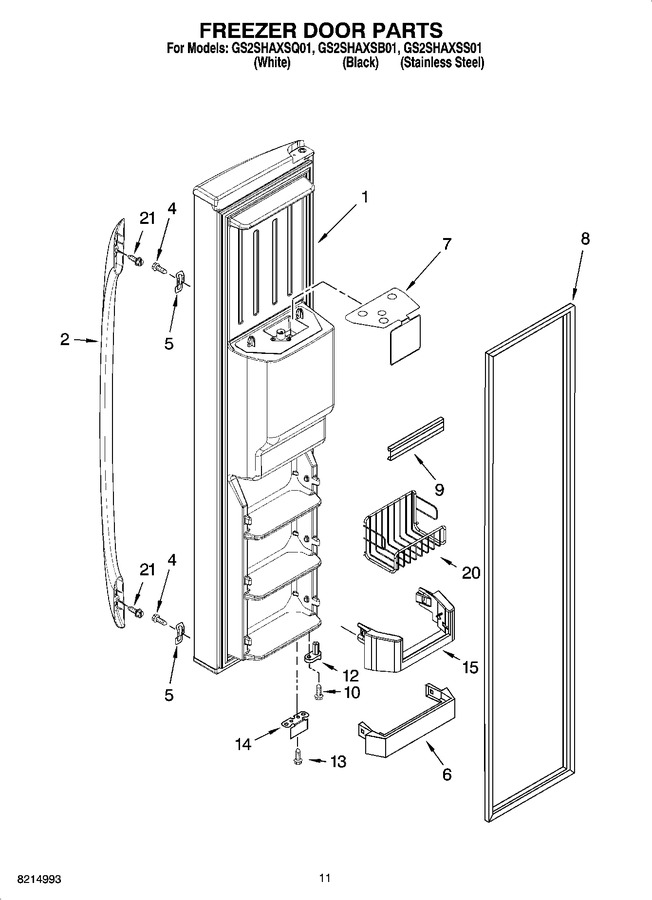

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts


12 - Air Flow Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2315834W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2315834B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2315834SB		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2305993B		Handle (includes 21) (black)				$ 100.25
2	2305993W		Handle (includes 21) (white)		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	WP2156021		Trivet   (Replaces: 2156021K)				$ 63.27
7	2304896		Safety Barrier		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 310.39
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 23.11
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2200082B		Bracket, Door Stop (black)				$ 42.44
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
15	2223472		Trivet, Tilt Out (2)		Appelez-nous	-
20	2304308		Basket, Tilt Out (2)		Appelez-nous	-
21	8533920		Screw				$ 5.27
