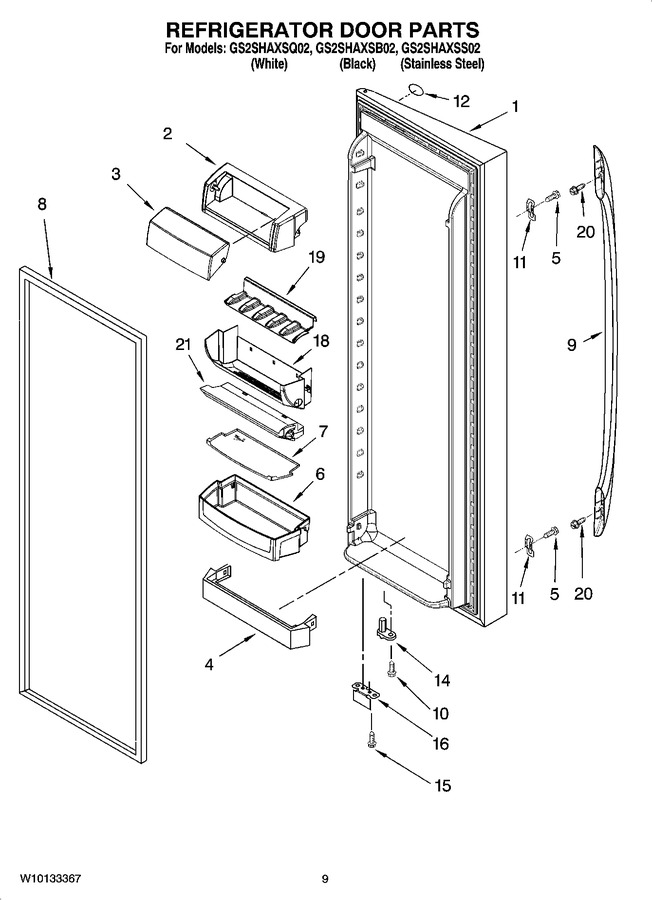

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts


12 - Air Flow Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255533W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
1	2255533B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
1	2255533SB		Refrigerator Door (includes Item 8) (stainless Steel)		Appelez-nous	-
2	2255420		Door Compartment				$ 49.86
3	2255421		Dairy Door				$ 34.76
4	WP2318736		Trivet, Shelf   (Replaces: 2223727)				$ 73.28
5	WP489491		Screw   (Replaces: 489491)				$ 6.95
6	2304952K		Door Bin (3)		Appelez-nous	-
7	2223464K		Mat, Bin (2)		Appelez-nous	-
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 317.32
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 319.60
9	2305993B		Handle (includes 20) (black)				$ 100.25
9	2305993W		Handle (includes 20) (white)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
12	2220214		Nameplate				$ 32.43
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2200082B		Bracket, Door Stop (black)				$ 42.44
16	2200082		Bracket, Door Stop (chrome)				$ 5.83
18	2255422		Frame, Can Rack				$ 70.07
19	2255423		Floor, Can Rack		Appelez-nous	-
20	8533920		Screw				$ 5.27
21	2255424		Air Diffuser Asm		Appelez-nous	-
