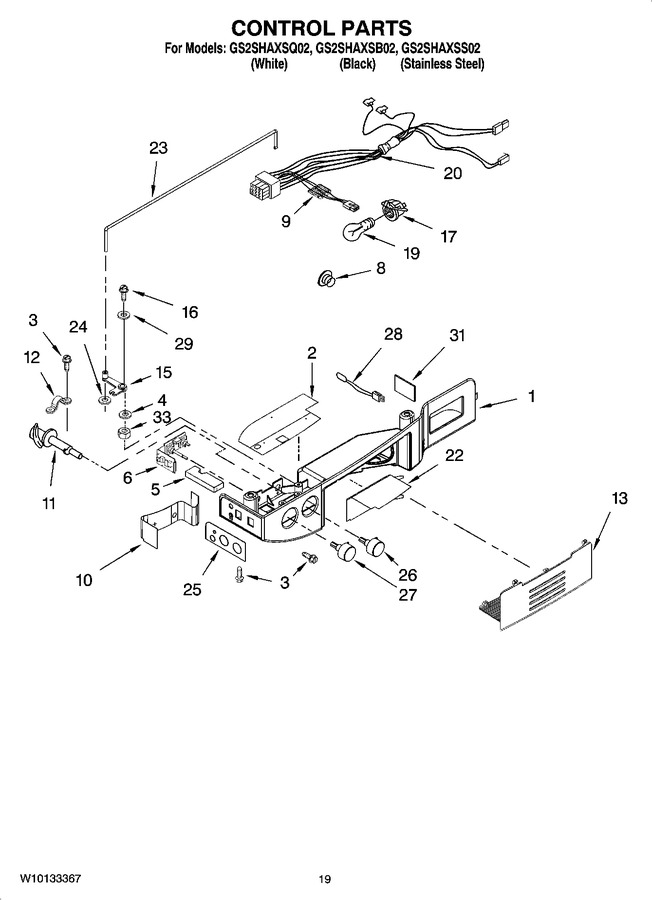

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255222		Control Box				$ 72.46
2	2261773		Shield		Appelez-nous	-
3	WP3196557		Screw (4)   (Replaces: 3196537)			Immediately	$ 7.95
4	3400972		Washer		Appelez-nous	-
5	2188928		Foam, Shield		Appelez-nous	-
6	2304103		Electronic Control				$ 184.87
8	940014		Hole Plug				$ 18.33
9	2308165		Ferrite Bead		Appelez-nous	-
10	2305538		Shield, Electrical		Appelez-nous	-
11	2255226		Cam Assembly		Appelez-nous	-
12	2255413		Bearing Body		Appelez-nous	-
13	2255225		Light Lens		Appelez-nous	-
15	2255227		Pivot Arm		Appelez-nous	-
16	627068		Screw				$ 12.12
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
19	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
20	2187965		Control Box Harness				$ 104.10
22	2255666		Shield, Heat		Appelez-nous	-
23	2255228		Connecting Rod		Appelez-nous	-
24	489285		Fastener, Push-on		Appelez-nous	-
25	2255611		Escutcheon, Control Box		Appelez-nous	-
26	2255232		Knob, Rc		Appelez-nous	-
27	2255992		Knob, Fc		Appelez-nous	-
28	WP2188819		Thermistor   (Replaces: 2188819)			Immediately	$ 46.01
29	489203		Spring Washer		Appelez-nous	-
31	2261265		Air Seal, Thermistor		Appelez-nous	-
33	3400971		Nut, Hex		Appelez-nous	-
