SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts


12 - Air Flow Parts, Optional Parts (not Included)

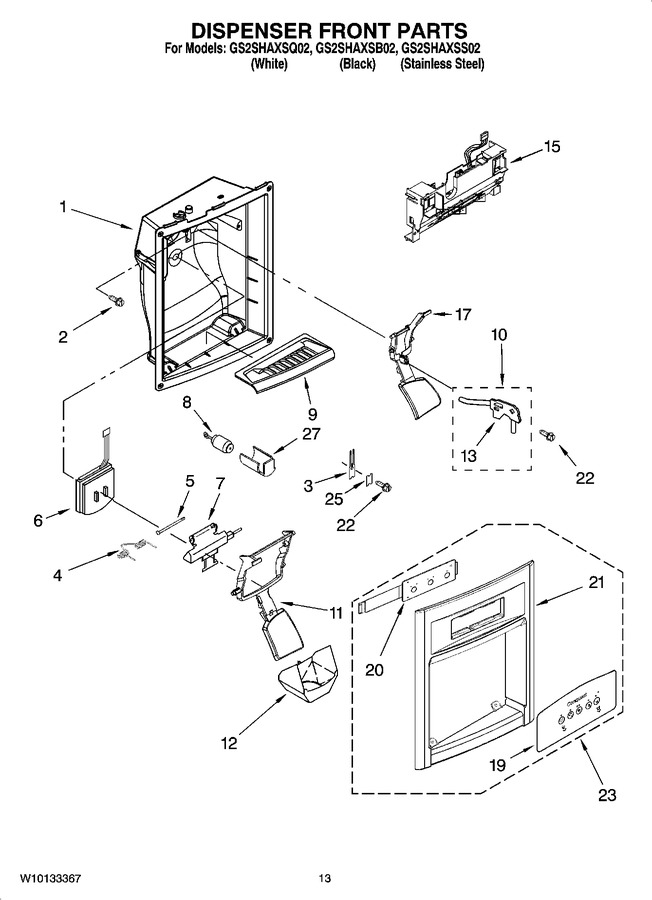

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 83.24
5	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 24.69
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	2207048W		Grille, Overflow (white)		Appelez-nous	-
9	2207048B		Grille, Overflow (black)				$ 30.06
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2304317)				$ 134.13
11	WP2255431B		Lever, Ice Dispenser (black)   (Replaces: 2255431B)				$ 105.42
11	WP2255431W		Lever, Ice Dispenser (white)   (Replaces: 2255431W)				$ 102.09
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
13	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 15.60
15	2323005		Bracket, Control		Appelez-nous	-
17	WP2255432B		Lever, Water Dispenser (black)   (Replaces: 2255432B)				$ 106.06
17	WP2255432W		Lever, Water Dispenser (white)   (Replaces: 2255432W)				$ 100.95
22	WP3400906		Screw   (Replaces: 489000)				$ 7.84
23	2318553B		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)				$ 173.52
23	2318553W		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)				$ 169.10
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
27	2252127		Sleeve, Mechanism Display				$ 22.00

    View Diagram in Separate Window       Print Part List
