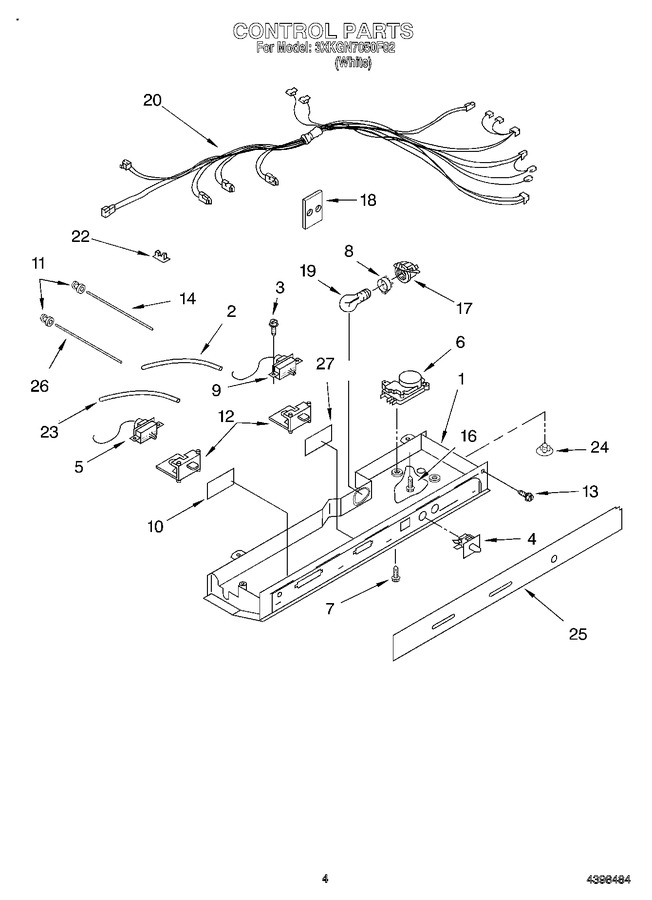

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2182150)				$ 7.95
3	2006254		Screw (3)   (Replaces: 489214)				$ 13.13
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	2187158		Thermostat (fc)				$ 90.49
6	WP2188379		Defrost Timer (10 Hr.)   (Replaces: 2187157)				$ 193.40
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	WP2175210		Shroud, Light   (Replaces: 2175210)				$ 82.61
9	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 248.67
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 21.22
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.67
14	2179920		Light Bar (rc)				$ 37.08
16	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
18	2172931		Heat Shield				$ 70.38
19	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
20	2186813		Harness, Control Box		Appelez-nous	-
22	1115375		Clip, Wiring				$ 11.15
23	WP2196003		Tube, Barrier Thermostat   (Replaces: 2196003)				$ 7.95
24	2166844		Hole Plug		Appelez-nous	-
25	2175064		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
