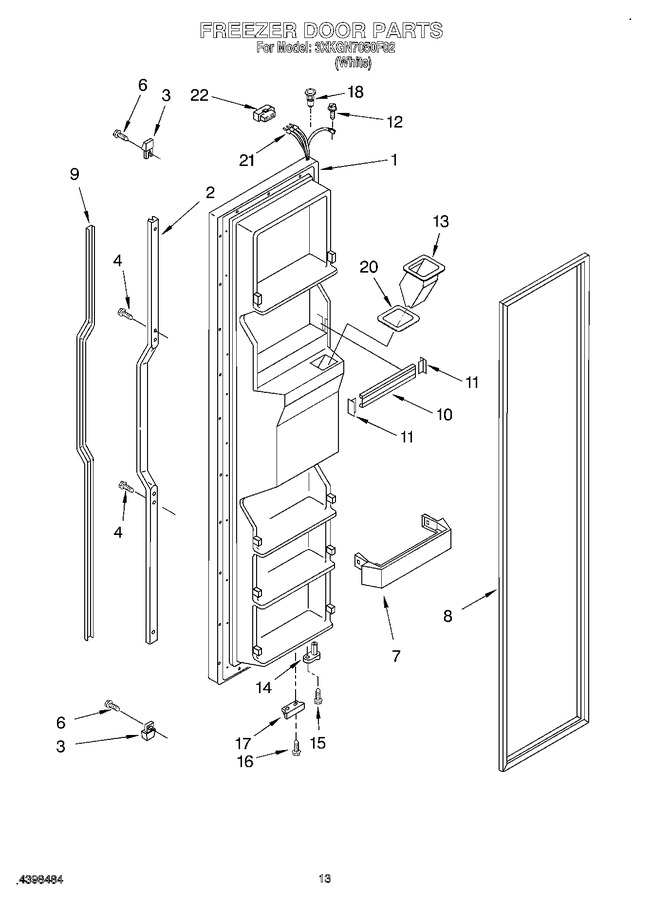

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197723		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2194777W		Retainer, Insert		Appelez-nous	-
3	2194778W		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
6	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)				$ 325.70
9	2173825		Insert, Handle		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2195931)			Immediately	$ 24.27
11	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 12.79
12	WP488234		Screw   (Replaces: 489422)				$ 7.08
13	2180204		Chute, Ice		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
16	WP999367		Screw   (Replaces: 489367)				$ 8.56
17	2195950		Bracket, Door Stop				$ 5.84
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
20	2198249		Seal, Housing		Appelez-nous	-
21	2180229		Wire Harness				$ 73.70
22	WP2154473		Housing Connector   (Replaces: 2162412)				$ 24.83
