SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door

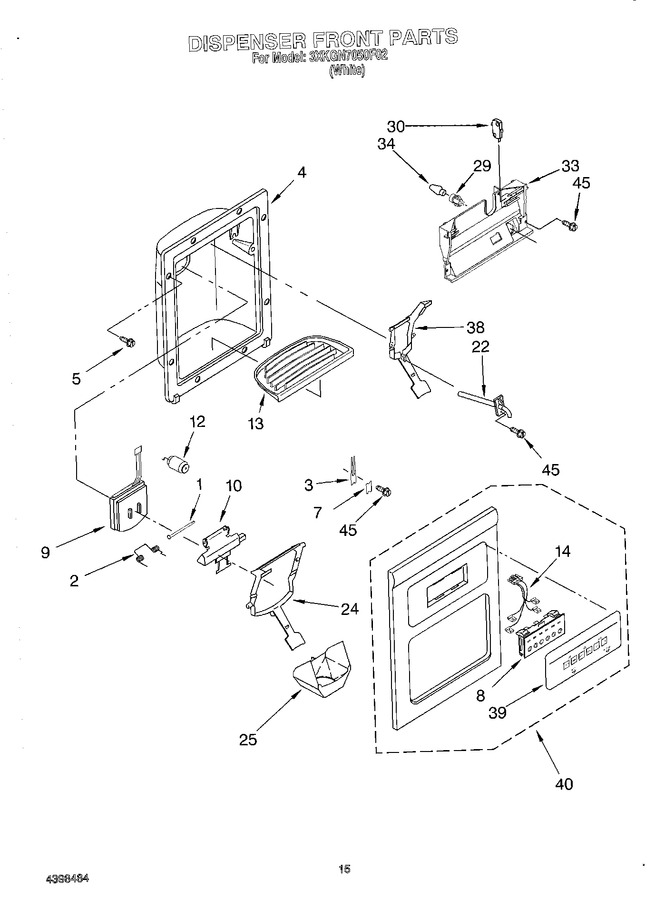

08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Air Flow, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
2	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 87.40
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 12.36
4	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
5	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
7	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
8	WP2180236		Switch Assembly (also Order Item No. 39)   (Replaces: 2180236)				$ 288.00
9	WP2180353		Door, Ice   (Replaces: 2203886)			Immediately	$ 26.83
10	2180208		Door Mechanism Assembly		Appelez-nous	-
12	2180223		Delay Mechanism		Appelez-nous	-
13	2180323		Grille, Overflow				$ 30.68
14	2311650		Wire Assembly   (Replaces: 2196199)				$ 94.16
22	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2180225)				$ 290.25
24	2180259		Lever Assembly, Ice Dispenser				$ 42.12
25	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
29	2180200		Lamp Holder				$ 103.59
30	WP2162361		Switch (4)   (Replaces: 2162361)			Immediately	$ 28.71
33	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 26.97
34	989331		Bulb, Light		Appelez-nous	-
38	WPW10152858		Lever Assembly, Water Dispenser   (Replaces: 2180268)				$ 109.83
39	2197718		Plaque, Front Cover		Appelez-nous	-
40	2197724W		Front Cover Assembly (includes Items 8, 14 & 39)		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 9.05

    View Diagram in Separate Window       Print Part List
