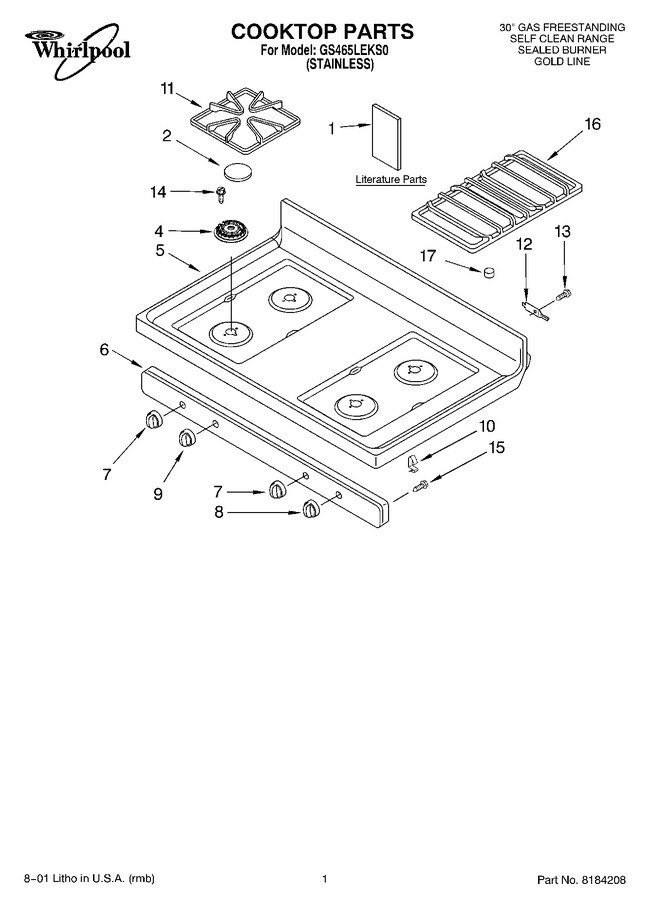

01 - Cooktop, Literature
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Door
06 - Drawer And Broiler, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8523048 | Literature Parts (template (instruct-install)) |
|
- | |||||
| 1 | LIT8522778 | Guide, Use & Care |
|
- | |||||
| 1 | LIT8522648 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT8522956 | Literature Parts (instructions, Installation) |
|
- | |||||
| 2 | WP3191898 | Cap, Burner (rr) (Replaces: 3191898) |
|
$ 71.00 | |||||
| 2 | WP3191904 | Cap, Burner (lf) (Replaces: 3191904) |
|
$ 184.16 | |||||
| 2 | WP3191901 | Cap, Burner (rf, Lr) (Replaces: 3191901) |
|
$ 128.91 | |||||
| 4 | 8273216 | Burner (burner (rr)) |
|
- | |||||
| 4 | WP4455980 | Burner (lr, Rf) (Replaces: 8273215) |
|
$ 65.21 | |||||
| 4 | WP4455981 | Burner (lf) (Replaces: 8273214) |
|
Immediately | $ 91.90 | ||||
| 5 | 8272253 | Cooktop |
|
- | |||||
| 6 | 8523855 | Panel, Manifold (Replaces: 8273027) |
|
$ 176.18 | |||||
| 7 | 8273279 | Knob, Control (2) |
|
$ 18.22 | |||||
| 8 | 8273280 | Knob, Accusimmer |
|
- | |||||
| 9 | 8273281 | Knob, Powerburner |
|
- | |||||
| 10 | 3195813 | Clip, Cooktop (2) |
|
- | |||||
| 11 | WPW10447925 | Grate, Burner (4) (Replaces: 8522851) |
|
Immediately | $ 299.55 | ||||
| 12 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 16 | 8522846 | Grate, Center |
|
$ 85.72 | |||||
| 17 | 8183759 | Pad, Grate (4) |
|
$ 13.13 |
