Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3186189 Endcap (right Hand) Appelez-nous -
1 3186188 Endcap (left Hand) Appelez-nous -
2 3186198 Support, Endcap (left Hand) Appelez-nous -
2 3186199 Support, Endcap (right Hand) Appelez-nous -
3 8522520 Panel, Backguard Appelez-nous -
4 W10276642 Screw   (Replaces: 4449746) Special Order $ 6.41

5 WPW10331686 Module, Spark   (Replaces: 8273977) In-Stock Immediately $ 393.86

6 8053505 Shield, Lower Heat Special Order $ 165.89

7 3196200 Clip, Spring (2) Special Order $ 10.45

8 8272474 Cover, Upper Appelez-nous -
9 8053910 Shield, Heat Appelez-nous -
10 8273132 Cover, Lower Appelez-nous -
12 8522545 Control, Range Appelez-nous -
13 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 14.72

14 WP3196170 Screw   (Replaces: 3196170) Special Order $ 7.55

15 8523000 Jumper W/fuse Appelez-nous -
16 9755076 Power Supply, Pca Appelez-nous -
19 WP8273564 Clip   (Replaces: 8273564) Special Order $ 12.66


    View Diagram in Separate Window     Print Icon   Print Part List

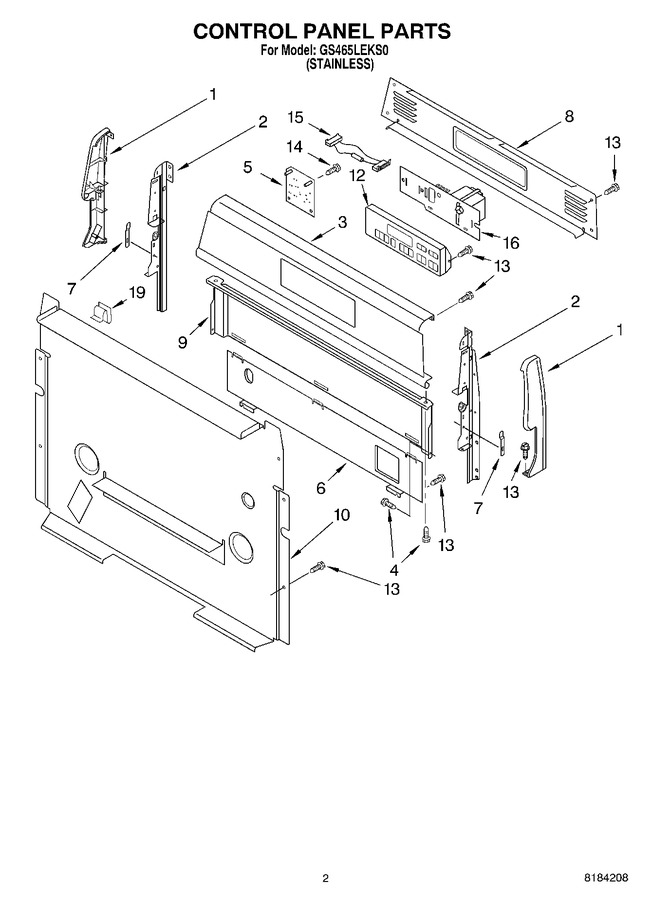

Diagram for GS465LEKS0
