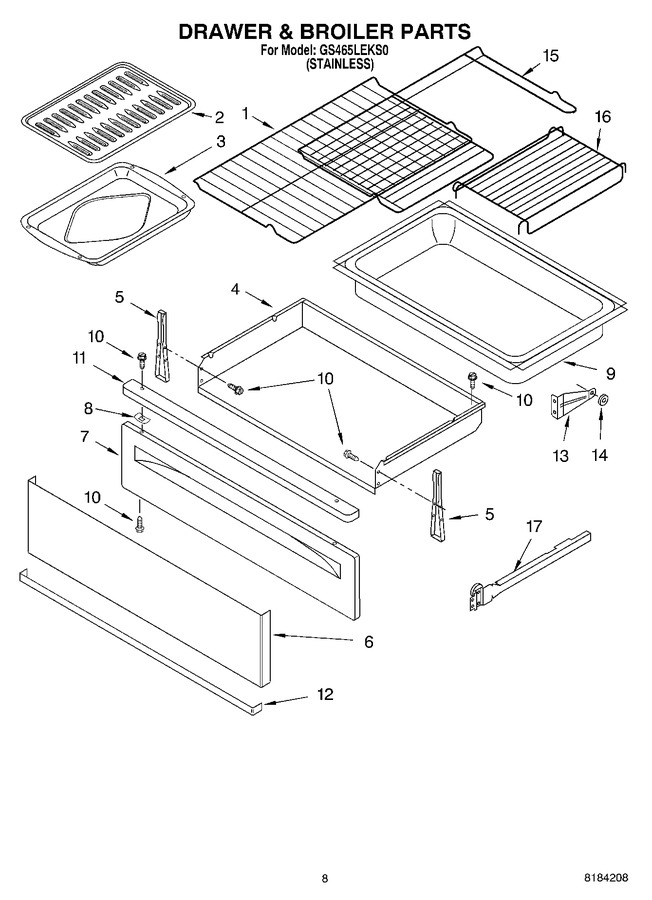

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Straight   (Replaces: 3195710)			Immediately	$ 46.84
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 98.65
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 330.36
4	8053343		Drawer, Storage		Appelez-nous	-
5	W11759228		Bracket, Drawer (2)   (Replaces: 3196817)				$ 28.27
6	8053952		Panel, S.s.		Appelez-nous	-
7	W11230490		Panel, Drawer Front   (Replaces: 8053338)				$ 211.59
8	WP9781235		Clip, Speed   (Replaces: 9781235)				$ 12.56
9	8272528		Glide, Drawer (2)		Appelez-nous	-
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
11	8053949		Handle, S.s.		Appelez-nous	-
12	8053950		Trim, S.s. Bottom				$ 82.35
13	8054069		Bracket, Roller		Appelez-nous	-
14	814229		Roller   (Replaces: 422604)			Immediately	$ 56.92
15	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 159.11
16	4396927		Rack, Insert   (Replaces: 8274022)				$ 246.10
17	8183759		Pad, Grate (kit Of 4)				$ 13.13
17	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	8274195		Harness, Electrode		Appelez-nous	-
17	3196896		Clamp, Cable		Appelez-nous	-
17	3196696		Clamp, Cable		Appelez-nous	-
17	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
17	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
17	8053527		Clip, Wire		Appelez-nous	-
17	814381		Pin Kit-dr Removal				$ 11.28
17	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
17	8274190		Rail, Drawer (left Hand)		Appelez-nous	-
17	8274191		Rail, Drawer (right Hand)		Appelez-nous	-
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
17	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
17	261582		Grease		Appelez-nous	-
17	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
17	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
17	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
17	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
17	285006		Paint, Spray 13 Oz. (black)				$ 59.89
17	350942		Primer (white)   (Replaces: 206922)				$ 94.14
17	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
17	978883		Almond (uncut)		Appelez-nous	-
17	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
17	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 32.62
17	8522613		Harness, Wire		Appelez-nous	-
17	8273901		Harness, Bake/broil				$ 69.23
17	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
