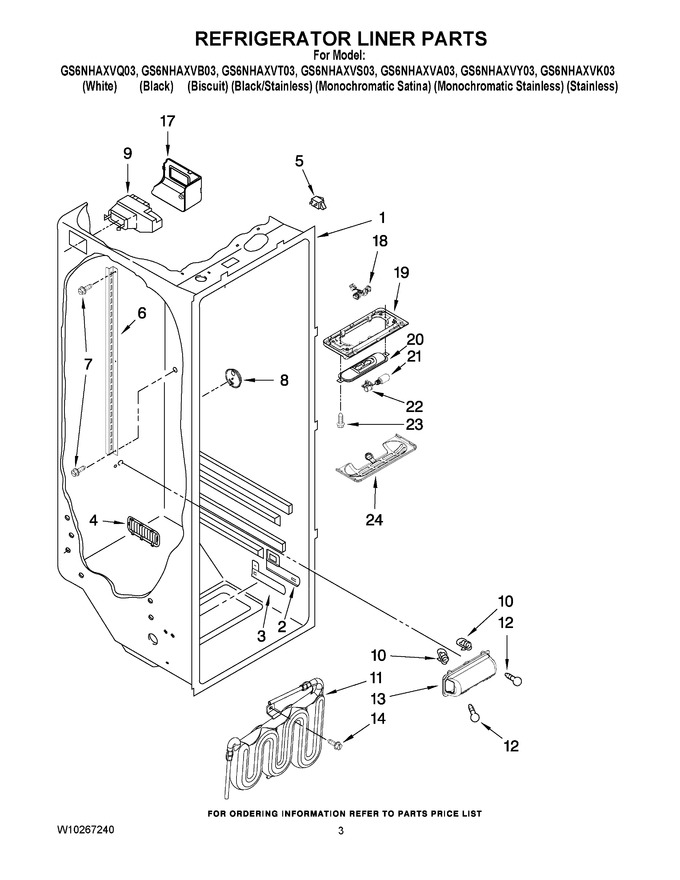

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10175967 | Escutcheon, Meat Pan Control |
|
$ 77.20 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2257741 | Louver |
|
- | |||||
| 5 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 6 | 2319866 | Shelf Ladder |
|
$ 22.16 | |||||
| 7 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.75 | |||||
| 8 | 2261601 | Door Control Asm |
|
$ 50.22 | |||||
| 9 | W10899382 | Air Diffuser Assembly (includes Rc & Fc Thermistors) (Replaces: W10128734) |
|
Immediately | $ 191.85 | ||||
| 10 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 11 | WPW10276792 | Reservoir (Replaces: 2307107) |
|
$ 137.57 | |||||
| 12 | W11679940 | Light Bulb (Replaces: W10194422) |
|
Immediately | $ 11.30 | ||||
| 13 | W11239891 | Shield Assy, Light (Replaces: W10242623) |
|
$ 96.69 | |||||
| 14 | W10141518 | Screw |
|
$ 9.09 | |||||
| 17 | W10128735 | Cover, Air- Diffuser |
|
- | |||||
| 18 | 2310527 | Wire Assembly, Rc-light |
|
- | |||||
| 19 | W10284481 | Trim, Light Rc (Replaces: 2326209) |
|
- | |||||
| 20 | 2223680 | Shield, Heat |
|
$ 89.07 | |||||
| 21 | WPW10191429 | Socket, Light (Replaces: 2223857) |
|
$ 8.38 | |||||
| 22 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.11 | ||||
| 23 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 7.84 | |||||
| 24 | 2223506 | Lens, Light |
|
$ 47.17 |
