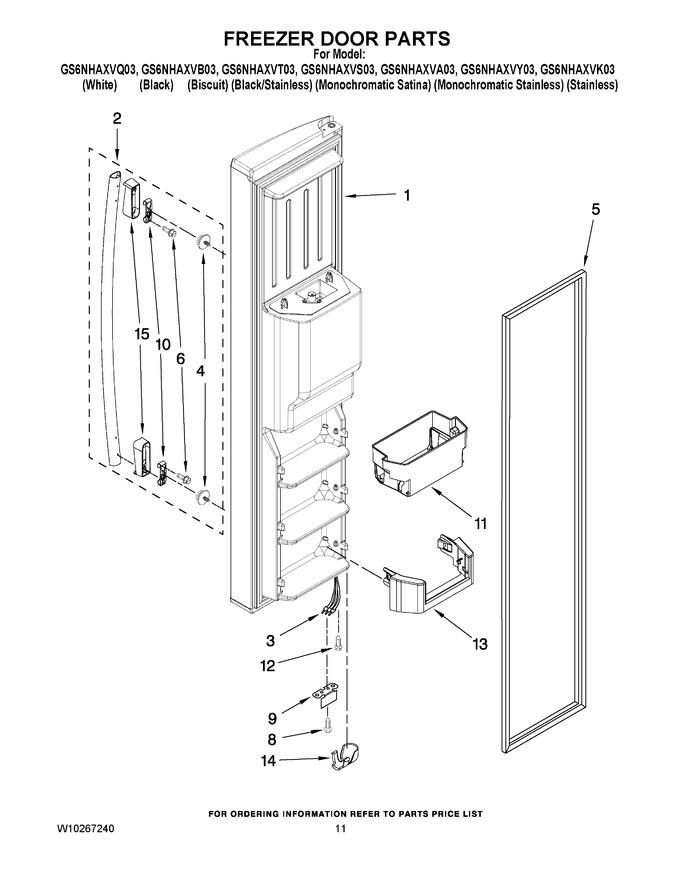

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10168057W		Freezer Door (includes No.5 (white)		Appelez-nous	-
1	W10168057B		Freezer Door (includes No.5 (black)		Appelez-nous	-
1	W10168057T		Freezer Door (includes No.5 (biscuit)		Appelez-nous	-
1	W10168057SB		Freezer Door (includes No.5 (stainless)		Appelez-nous	-
1	W10168057SS		Freezer Door (includes No.5 (mono Stainless)		Appelez-nous	-
1	W10168057LG		Freezer Door (includes No.5 (mono Satina)		Appelez-nous	-
2	WPW10257120		Handle, Assy (stainless)   (Replaces: W10214173)				$ 59.70
2	W10210942A		Handle, Assy (white)   (Replaces: W10127803)				$ 129.53
2	W10210942A		Handle, Assy (black)   (Replaces: W10127804)				$ 129.53
2	W10210944A		Handle, Assy (biscuit)   (Replaces: W10127805)		Appelez-nous	-
3	W10193374		Wire Assy, Door		Appelez-nous	-
4	W10267047		Screw, Mounting   (Replaces: W10201588)				$ 13.47
5	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
5	2159074		Door Gasket, Magnetic (mist)   (Replaces: 2221303)				$ 325.70
5	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
6	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
8	WP489483		Screw   (Replaces: 489420)				$ 11.41
9	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
9	2323534		Bracket, Door Stop (zinc)		Appelez-nous	-
10	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 36.55
11	W10142356		Bin, Tilt-out (2)		Appelez-nous	-
12	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
13	2223334		Trivet, Tilt-out (2)				$ 25.46
14	2323581		Cover, Thimble		Appelez-nous	-
15	W10152864		Endcap, Handle (stainless)		Appelez-nous	-
15	W10127813		Endcap, Handle (white)				$ 82.43
15	W10127814		Endcap, Handle (black)		Appelez-nous	-
15	W10127815		Endcap, Handle (biscuit)		Appelez-nous	-
