SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts

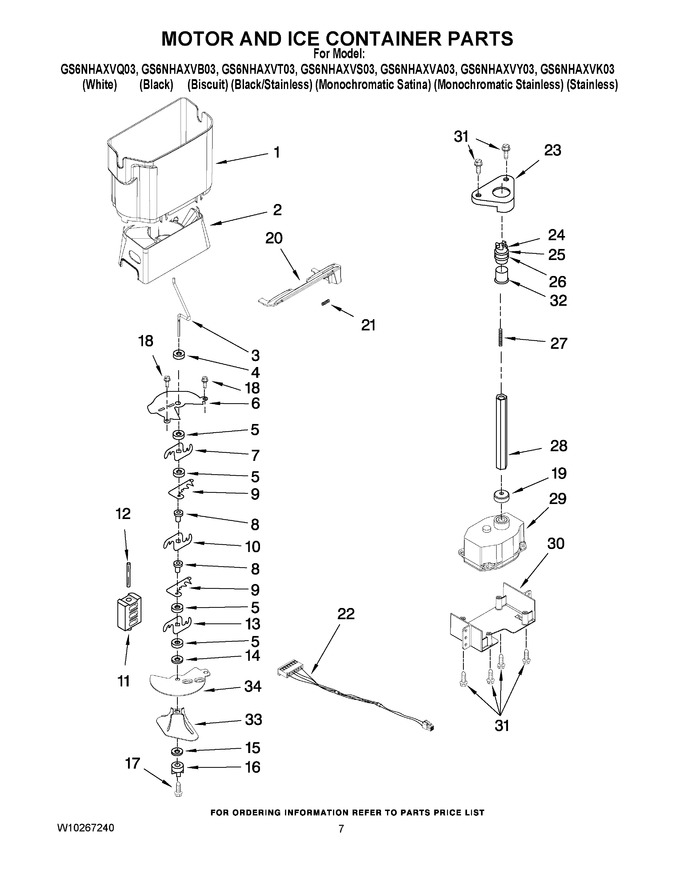

05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188746		Ice Bin		Appelez-nous	-
2	W10174543		Crusher Bin		Appelez-nous	-
3	W10852517		Auger   (Replaces: W10140642)				$ 155.75
4	2258220		Washer, Auger				$ 8.02
5	WP1119007		Spacer, Flat (4)   (Replaces: 1119007)				$ 14.77
6	W10139321		Cover, Crusher		Appelez-nous	-
7	W10278733		Blade, Rotary   (Replaces: 2257024)				$ 91.00
8	WP1119005		Spacer, Step (2)   (Replaces: 1119005)				$ 11.74
9	2257020		Blade, Fixed				$ 59.91
10	W10278732		Blade, Rotary   (Replaces: 2257023)				$ 91.00
11	2317239		Block, Blade				$ 11.47
12	489229		Roll Pin				$ 48.47
13	W10278731		Blade, Rotary   (Replaces: 2257022)				$ 90.87
14	489235		Washer, Plain				$ 8.05
15	WP2198661		Washer, Coupling   (Replaces: 2198661)				$ 11.45
16	WP2220457		Coupling   (Replaces: 2220457)			Immediately	$ 35.92
17	WP8281164		Screw   (Replaces: 8281164)				$ 11.33
18	WP3400065		Screw   (Replaces: 3400065)			Immediately	$ 8.18
19	2323357		Grommet, Drive Shaft				$ 13.40
20	W10140685		Latch, Bin		Appelez-nous	-
21	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
22	W10209512		Wire Assembly, Idi Motor		Appelez-nous	-
23	2212369		Holder				$ 22.63
24	WP2220458		Coupling, Bottom   (Replaces: 2220458)			Immediately	$ 41.04
25	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
26	WP2212370		Washer   (Replaces: 2212370)				$ 25.35
27	W10852956		Spring   (Replaces: 2198607)			Immediately	$ 21.40
28	2323355		Drive Shaft				$ 20.96
29	WP2323603		Dispenser, Motor   (Replaces: 2323603)				$ 376.52
30	2305208		Bracket, Motor				$ 69.84
31	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
32	WP2212365		Sleeve, Coupling   (Replaces: 2212365)				$ 31.51
33	2317243		Wiper				$ 84.91
34	2317250		Divider, Chamber				$ 36.47
100	W10188747		Ice Container (complete)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
