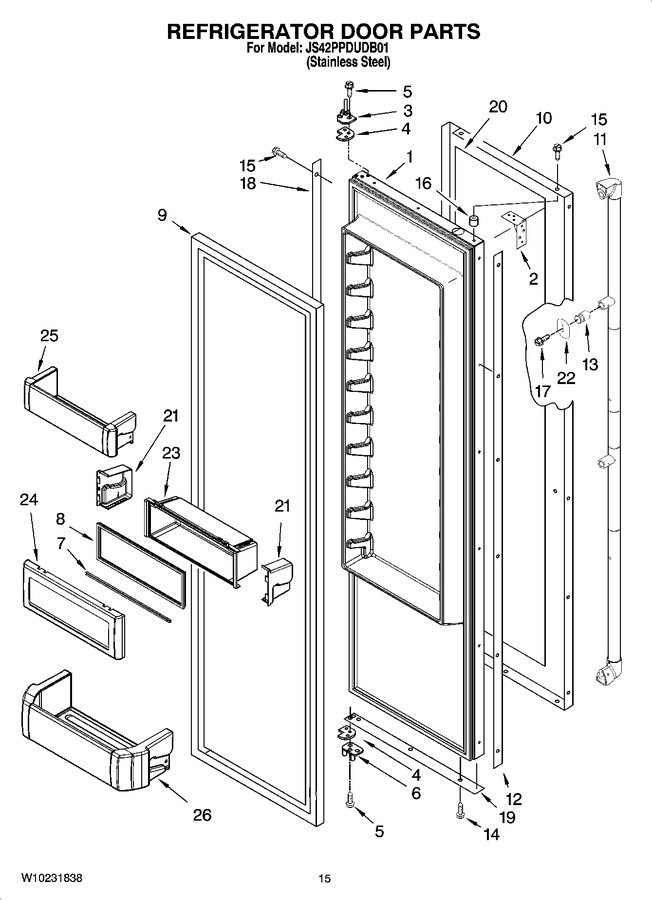

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193490		Door Assy, Rc (includes Item 9)		Appelez-nous	-
2	2258951		Brace, Door Corner				$ 33.35
3	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 312.50
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	W11448696		Rail, Lid   (Replaces: 2222796)				$ 153.99
8	W11448696		Gaasket, Utility Bin   (Replaces: 2222982)				$ 153.99
9	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 330.30
10	W10144969		Skin, Door (stainless Steel)		Appelez-nous	-
11	12859108		Handle, Door (stainless Steel)				$ 284.63
12	2309060		Spacer, Door-skin (handle Side) (for Stainless Steel Model)		Appelez-nous	-
13	WPW10153450		Stud, Mounting   (Replaces: W10153450)				$ 87.26
14	W10759522		Screw   (Replaces: 488568)				$ 8.24
15	WP8281250		Screw, 8-15 X .500 (stainless Steel)   (Replaces: 8281250)				$ 11.42
16	2005433		Spacer, Door-skin (top)				$ 23.33
17	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 8.30
18	W10142296		Spacer, Door-skin (hinge Side)		Appelez-nous	-
19	2004934		Spacer, Door-skin (bottom)		Appelez-nous	-
20	2005326		Filler, Door		Appelez-nous	-
21	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
21	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
22	W10127710		Plate, Door-handle			Immediately	$ 25.94
23	W10323042		Bin, Utility Center   (Replaces: 2222922)				$ 223.93
24	W11553221		Door, Utility Bin   (Replaces: 2257616)			Immediately	$ 69.64
25	W10323599		Bin, Door (3)   (Replaces: 2222773)				$ 146.61
26	W10323747		Bin, Door   (Replaces: 2222770)				$ 145.36
