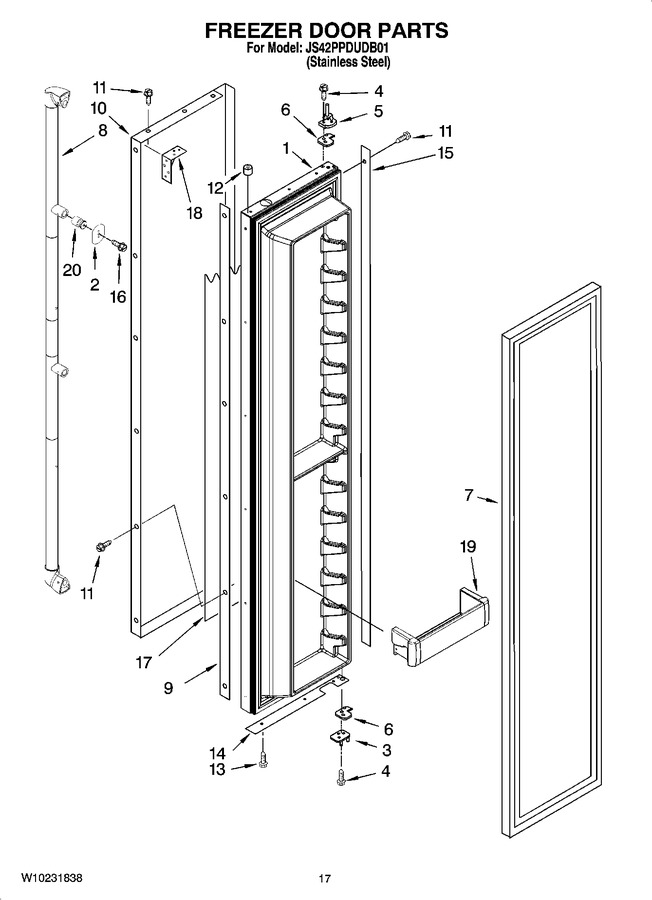

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193494		Door Assy, Fc (includes 14) (black)		Appelez-nous	-
2	W10127710		Plate, Door-handle			Immediately	$ 25.94
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
6	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
7	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)			Immediately	$ 329.66
8	WP12859107		Handle, Door (stainless Steel)   (Replaces: 12859107)				$ 388.30
9	2309060		Spacer, Door-skin (handle Side) (for Stainless Steel Model)		Appelez-nous	-
10	W10144963		Skin, Door (stainless Steel)		Appelez-nous	-
11	WP8281250		Screw (stainless Steel)   (Replaces: 8281250)				$ 11.42
12	2005433		Spacer, Door-skin (top)				$ 23.33
13	W10759522		Screw   (Replaces: 488568)				$ 8.24
14	2257385		Spacer, Door-skin (bottom)		Appelez-nous	-
15	W10142296		Spacer Door Assy (hinge Side)		Appelez-nous	-
16	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 8.30
17	W10159582		Filler, Door (bottom)		Appelez-nous	-
17	W10159585		Filler, Door (top)		Appelez-nous	-
18	2258951		Brace, Door Corner				$ 33.35
19	W10323602		Bin, Door (3)   (Replaces: 2222776)				$ 98.03
20	WPW10153450		Stud, Mounting   (Replaces: W10153450)				$ 87.26
