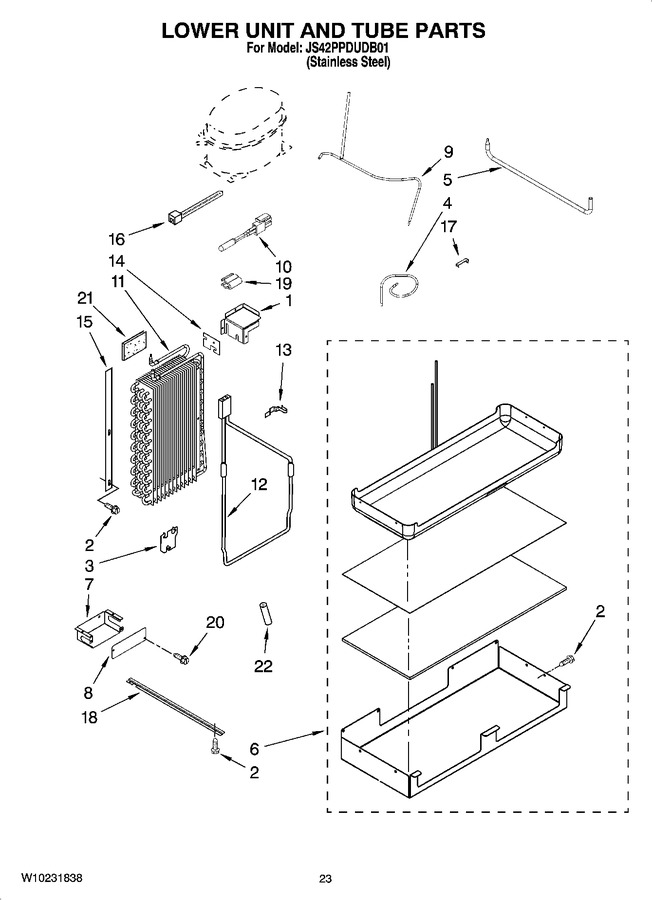

14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160981		Bracket Assembly, Air Return		Appelez-nous	-
2	W11624204		Screw   (Replaces: 486194)				$ 14.72
3	W10157752		Bracket, Heater Mounting		Appelez-nous	-
4	2309076		Suction Tube				$ 136.59
5	W10388653		Tube, Connect (drier/restrictor)   (Replaces: 2309070)			Immediately	$ 40.48
6	W11623101		Drain Pan Assy.   (Replaces: W10196999)			Immediately	$ 394.02
7	W10151288		Cover, Wiring		Appelez-nous	-
8	W10153595		Cover, Box		Appelez-nous	-
9	W10412488		Tube, Discharge   (Replaces: W10121371)				$ 120.68
10	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
11	WPW10205101		Evaporator   (Replaces: W10205101)			Immediately	$ 324.43
12	W11812025		Heater, Defrost   (Replaces: W10140161)				$ 76.48
13	1113048		Clamp, Heater (2)		Appelez-nous	-
14	W10139908		Cover Seal, Evaporator Tubes				$ 13.06
15	2220832		Gasket, Evaporator		Appelez-nous	-
16	4389107		Wire Tie		Appelez-nous	-
17	W10169509		Clip, Heat Exchanger		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
19	9791833		Clip		Appelez-nous	-
20	WP489069		Screw, 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
21	W11553819		Insulation, Sound   (Replaces: 2220241)			Immediately	$ 14.77
22	2215648		Dampener				$ 13.21
