Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Cabinet Trim Parts
02 - Cabinet Trim Parts

Diagram for 03 - Freezer Shelf Parts
03 - Freezer Shelf Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Control Panel Parts
05 - Control Panel Parts

Diagram for 06 - Top Grille And Unit Cover Parts
06 - Top Grille And Unit Cover Parts

Diagram for 07 - Refrigerator Shelf Parts
07 - Refrigerator Shelf Parts

Diagram for 08 - Freezer Liner And Air Flow Parts
08 - Freezer Liner And Air Flow Parts

Diagram for 09 - Refrigerator Door Parts
09 - Refrigerator Door Parts

Diagram for 10 - Freezer Door Parts
10 - Freezer Door Parts

Diagram for 11 - Upper Unit Parts
11 - Upper Unit Parts

Diagram for 12 - Lower Unit And Tube Parts
12 - Lower Unit And Tube Parts

Diagram for 13 - Icemaker Parts
13 - Icemaker Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10132472 Cabinet, Trim (right Side) Appelez-nous -
3 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.55

4 2316687 Cabinet, Trim (bottom) Special Order $ 184.68

5 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

6 2314017 Cabinet, Trim Top Special Order $ 124.60

7 W10132541 Cabinet Trim (left Side) Appelez-nous -
8 WPW10121451 Nutsert (4)   (Replaces: W10121451) In-Stock Immediately $ 8.03

9 2005925 Seal-trim, Side Special Order $ 83.72

10 WP489464 Screw   (Replaces: 489464) In-Stock Immediately $ 8.38


    View Diagram in Separate Window     Print Icon   Print Part List

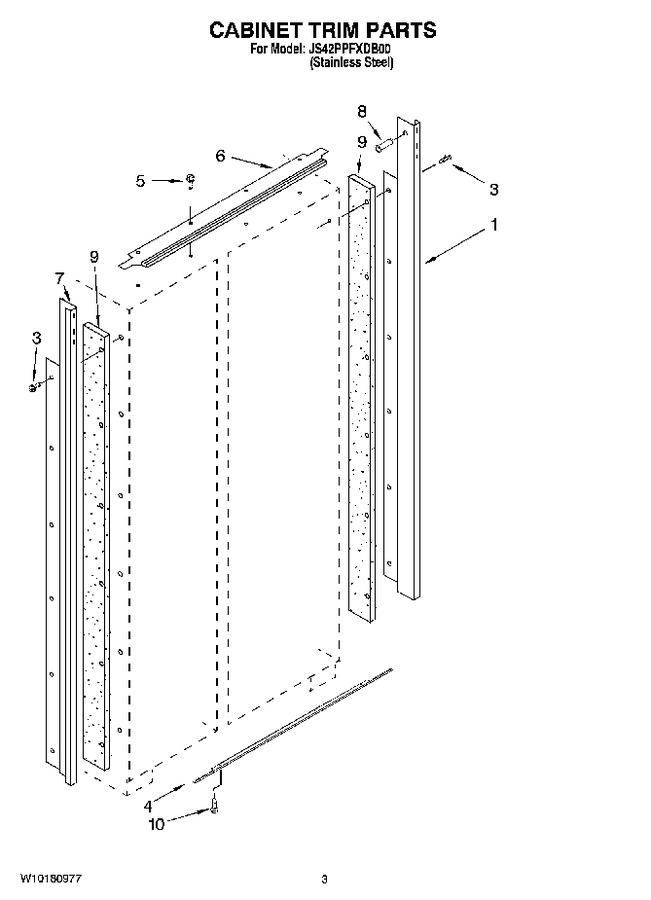

Diagram for JS42PPFXDB00
