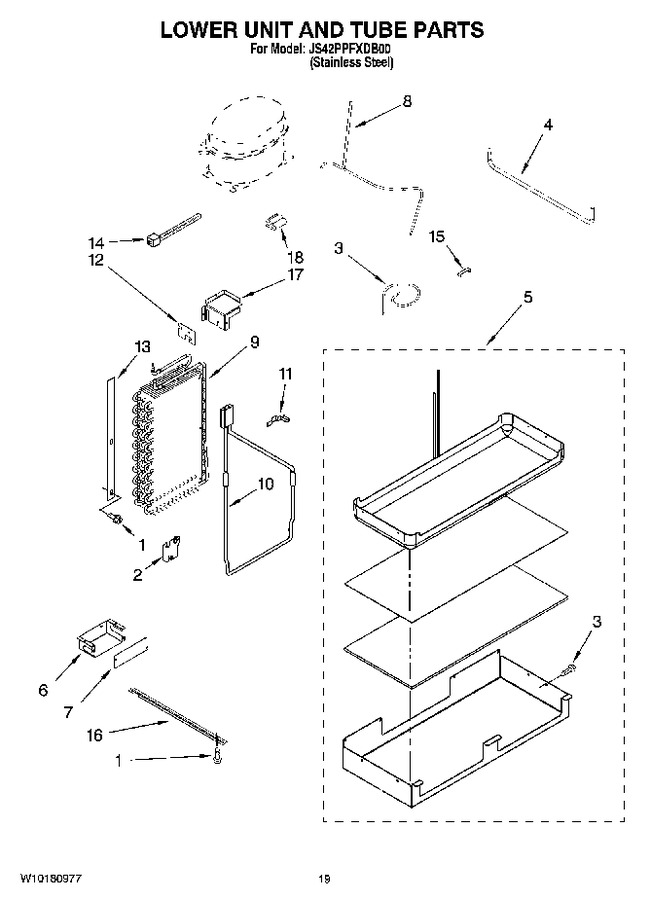

12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11624204		Screw   (Replaces: 486194)				$ 14.72
2	W10157752		Bracket		Appelez-nous	-
3	2309076		Tube, Suction				$ 136.59
4	W10388653		Tube, Connect (drier/restrictor)   (Replaces: 2309070)			Immediately	$ 40.48
5	W11623101		Drain Pan Assembly   (Replaces: 2320615)			Immediately	$ 394.02
6	W10151288		Cover, Wiring		Appelez-nous	-
7	2316684		Cover, Box		Appelez-nous	-
8	W10412488		Tube, Discharge   (Replaces: W10121371)				$ 120.68
9	WP2306093		Evaporator   (Replaces: 2306093)			Immediately	$ 382.84
10	W11812025		Heater, Defrost   (Replaces: W10140161)				$ 76.48
11	1113048		Clamp, Heater (2)		Appelez-nous	-
12	W10139908		Cover Seal, Evaporator Tubes				$ 13.06
13	2220832		Gasket, Evaporator		Appelez-nous	-
14	4389107		Wire Tie		Appelez-nous	-
15	W10169509		Clip, Heat Exchanger		Appelez-nous	-
16	2320554		Support, Drain Pan		Appelez-nous	-
17	W10160981		Bracket Assembly,		Appelez-nous	-
18	9791833		Clip		Appelez-nous	-
