01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts

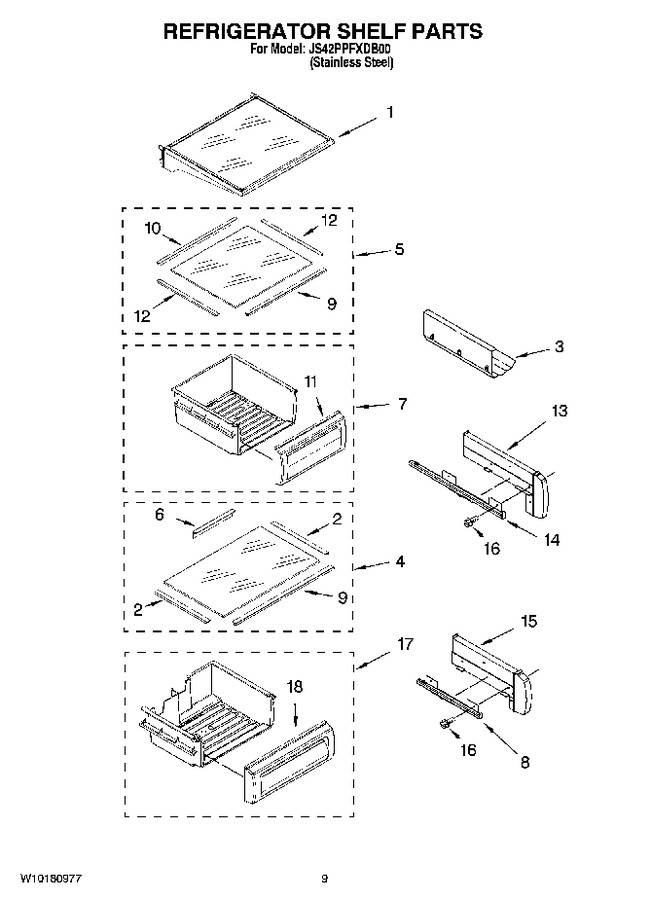

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141494		Shelf Assy (4)		Appelez-nous	-
2	2256250		Trim, Glass Side Meat Pan		Appelez-nous	-
3	W10777924		Rack, Wine   (Replaces: 2179404)				$ 24.78
4	W10151215		Meat Pan Cover Assembly				$ 108.30
5	W10151213		Crisper Cover Assembly		Appelez-nous	-
6	2257582		Trim, Glass Rear		Appelez-nous	-
7	W10407624		Crisper Pan (2)   (Replaces: 2252412)				$ 177.44
8	2302954		Slide, Meat Pan (left Side)				$ 343.49
8	2302955		Slide, Meat Pan (right Side)				$ 343.18
9	2302831		Trim, Glass Front		Appelez-nous	-
10	2256254		Trim, Glass Rear		Appelez-nous	-
11	2256248		Front, Crisper Pan		Appelez-nous	-
12	2252255		Trim, Glass Side		Appelez-nous	-
13	2256222		Spacer, Crisper (right Side (2))				$ 89.24
13	2256223		Spacer, Crisper (left Side (2))				$ 84.49
14	2302956		Slide, Crisper (left Side (2))				$ 298.73
14	2302957		Slide, Crisper (right Side (2))				$ 228.33
15	2256243		Spacer, Meat Pan (left Side)				$ 83.04
15	2256244		Spacer, Meat Pan (right Side)				$ 103.70
16	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
17	W10407627		Pan Assembly Meat   (Replaces: 2256369)				$ 175.77
18	WP2256366		Front, Meat Pan   (Replaces: 2256366)				$ 190.12

    View Diagram in Separate Window       Print Part List
