| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
67004130 |
|
Shelf, Crisper Top |
50 |
Appelez-nous
|
- |
|
|
|
| 2 |
67004484 |
|
Barrier, Crisper Shelf |
50 |
Appelez-nous
|
- |
|
|
|
| 3 |
WP12603701 |
 |
Support, Crisper Frame (Replaces: 12603701) |
50 |
|
|
$ 10.31 |
|
|
| 4 |
WP67004531 |
 |
Frame, Crisper Shelf (Replaces: 67004905) |
50 |
|
|
$ 209.66 |
|
|
| 4 |
67004249 |
|
Seal, Crisper Frame (rear) |
50 |
Appelez-nous
|
- |
|
|
|
| 5 |
67005620 |
|
Glide, Crisp Frame (w/bumper) |
50 |
|
|
$ 306.41 |
|
|
| 6 |
67006964 |
|
Screw, Sm |
50 |
|
|
$ 5.71 |
|
|
| 7 |
67005820 |
|
Pan, Sm Crisper |
50 |
Appelez-nous
|
- |
|
|
|
| 8 |
67005459 |
|
Front, Sm Crisper Pan |
50 |
Appelez-nous
|
- |
|
|
|
| 9 |
67005412 |
|
Pan, Lg Crisper |
50 |
Appelez-nous
|
- |
|
|
|
| 10 |
67005460 |
|
Front, Lg Crisper Pan |
50 |
Appelez-nous
|
- |
|
|
|
| 11 |
67005639 |
|
Pan, Meat |
50 |
Appelez-nous
|
- |
|
|
|
| 12 |
67005461 |
|
Front, Meat Pan |
50 |
Appelez-nous
|
- |
|
|
|
| 13 |
67005898 |
 |
Glide, Meat Frame (w/bumper) |
50 |
|
|
$ 39.39 |
|
|
| 14 |
67004132 |
|
Glass, Meat Shelf |
50 |
Appelez-nous
|
- |
|
|
|
| 15 |
67004247 |
|
Frame, Meat Shelf |
50 |
Appelez-nous
|
- |
|
|
|
| 16 |
67004175 |
|
Housing, Temp. Control |
50 |
Appelez-nous
|
- |
|
|
|
| 17 |
67004176 |
|
Slide, Temp. Control |
50 |
Appelez-nous
|
- |
|
|
|
| 18 |
67004177 |
|
Gasket, Temp. Control |
50 |
Appelez-nous
|
- |
|
|
|

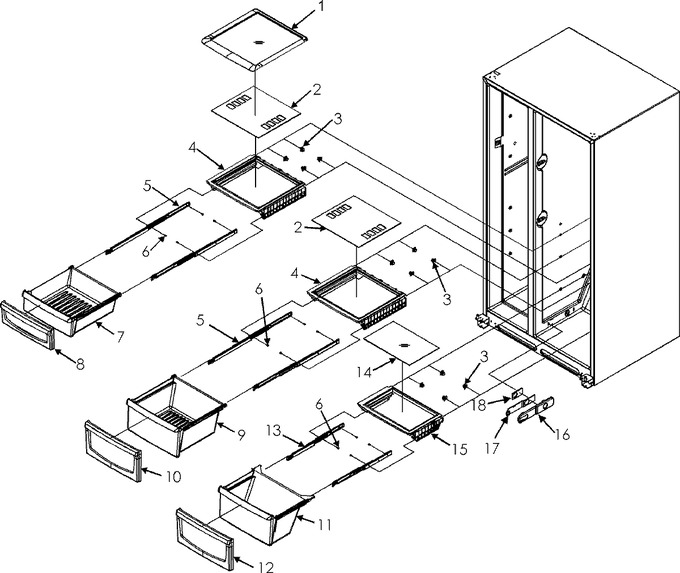

View Diagram in Separate Window
Print Part List
