SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor/cond Motor/rear Rollers


03 - Controls


04 - Crisper Assembly


05 - Evap Fan/convection Fan/crisp Lt/filter


06 - Evaporator/front Rollers/water Tank


07 - Fountain


08 - Freezer Compartment


09 - Freezer Door


10 - Freezer Shelves


11 - Handles


12 - Hinges


13 - Ice Bucket Assy.


14 - Ice Maker


15 - Refrigerator Door


16 - Refrigerator Shelves


17 - Supplemental Information


18 - Wiring Information

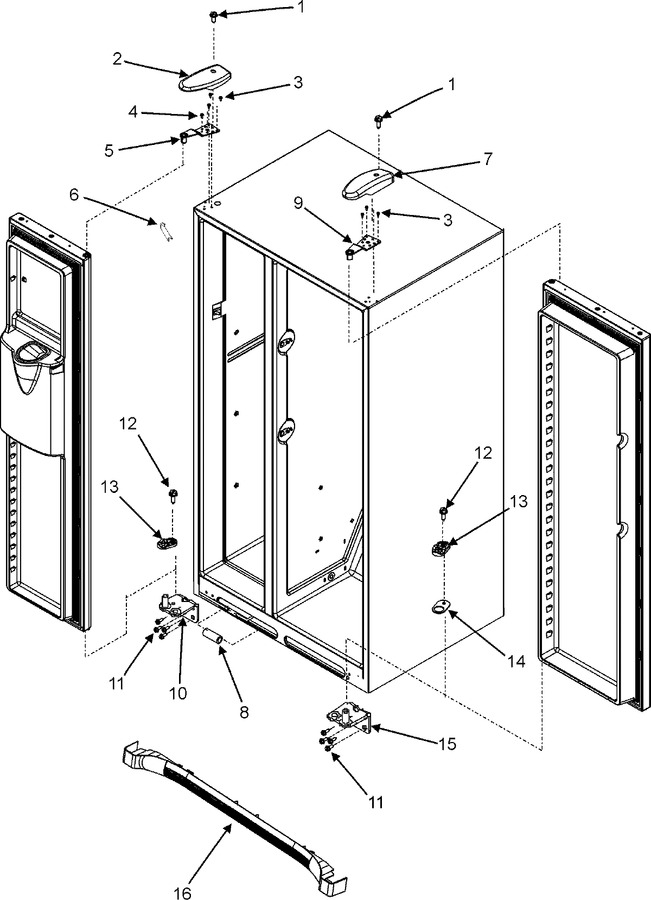

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8281196		Screw   (Replaces: 67006521)	50		Immediately	$ 7.55
2	67004029		Cover, Top Hinge (lt-wht)	50	Appelez-nous	-
3	WP489349		Screw   (Replaces: 67006303)	50		Immediately	$ 8.43
4	W11214483		Screw   (Replaces: 67006487)	50			$ 14.72
5	67005831		Hinge, Top (lt-blk)	50	Appelez-nous	-
6	67003484		Cover, Corner (wht)	50			$ 21.42
7	67004030		Cover, Top Hinge (rt-wht)	50	Appelez-nous	-
8	WP2300868		Union, Tube (5/16``-5/16``)   (Replaces: 61006182)	50		Immediately	$ 29.05
9	67005832		Hinge, Top (rt-blk)	50	Appelez-nous	-
10	67006685		Hinge, Bottom (lt-blk)	50	Appelez-nous	-
11	67006564		Screw, Sm/hex	50		Immediately	$ 8.15
12	WP489483		Screw   (Replaces: 67006492)	50			$ 11.41
13	67006493		Closure, Door (blk)	50			$ 19.93
14	WP67005716		Shim, Closure (blk)   (Replaces: 67005716)	50			$ 7.83
15	67006686		Hinge, Bottom (rt-blk)	50	Appelez-nous	-
16	12627302		Clip, Toe Grille	50			$ 5.84
16	WP67006687		Grille, Toe (wht)   (Replaces: 67006836)	50			$ 111.76
