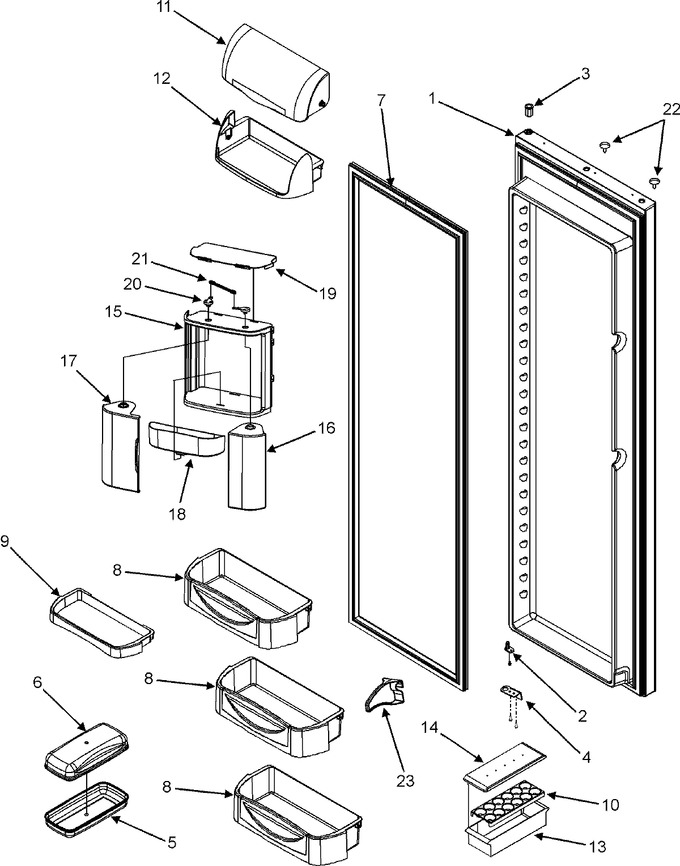

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006935		Door Assy., Ref. Foam (wht)	50	Appelez-nous	-
2	67006134		Closure, Door (blk)	50	Appelez-nous	-
3	67004976		Bushing, Door (blk)	50	Appelez-nous	-
4	67006672		Screw	50	Appelez-nous	-
4	67006517		Stop, Door (wht)	50	Appelez-nous	-
5	67004404		Tray, Butter	50	Appelez-nous	-
6	67004405		Lid, Butter Tray	50	Appelez-nous	-
7	67003966		Gasket, Ref. Door (wht)	50	Appelez-nous	-
8	67004540		Bucket Assy., Ref. Door	50			$ 32.69
9	67004458		Retainer, Tall Bottle	50	Appelez-nous	-
10	10436506		Tray, Egg	50			$ 8.28
11	67001325		Door, Dairy	50	Appelez-nous	-
12	67002304		Tray, Dairy	50	Appelez-nous	-
13	10423131		Bin, Utility	50			$ 31.13
14	10436404		Lid, Utility	50			$ 60.85
15	67002294		Frame, Large Chiller	50	Appelez-nous	-
16	67002297		Door, Large Chiller (rt)	50	Appelez-nous	-
17	67004542		Door, Lg Chiller (lt)	50	Appelez-nous	-
18	67002296		Tray, Chiller	50			$ 26.66
19	67002291		Cover, Chiller	50	Appelez-nous	-
20	67002293		Linkage, Chiller	50			$ 11.76
21	67002292		Linkage, Ctr Chiller	50	Appelez-nous	-
22	M0311605		Plug, Button (wht)	50	Appelez-nous	-
23	67004564		Snugger, Door Shelf	50	Appelez-nous	-
