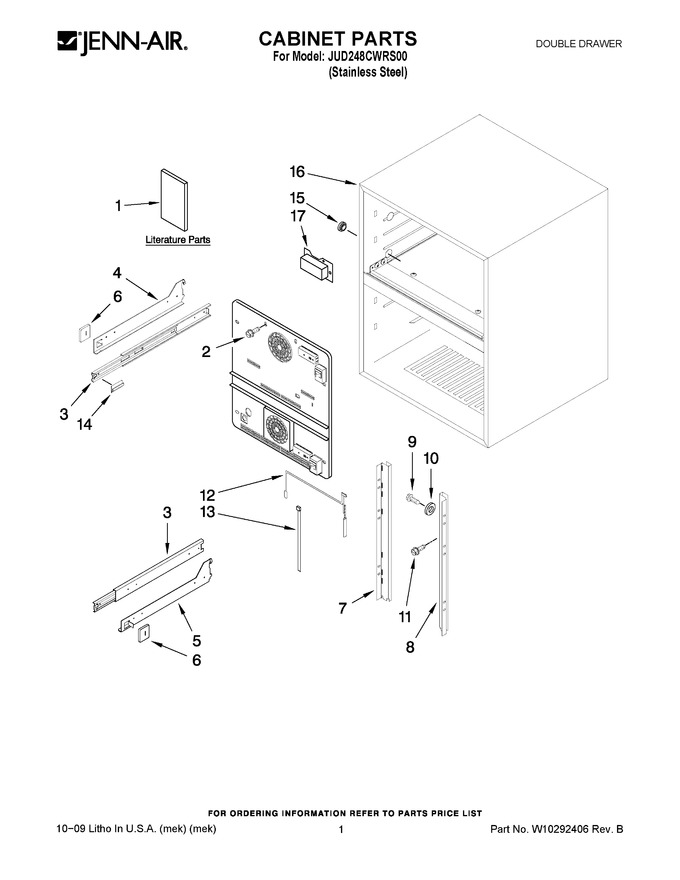

01 - Cabinet Parts


02 - Liner Parts


03 - Upper Drawer Parts


04 - Lower Drawer Parts


05 - Unit Parts


06 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10130023		Use & Care Guide		Appelez-nous	-
1	W10304208		Service & Wiring Sheet		Appelez-nous	-
1	W10281590		Energy Guide		Appelez-nous	-
1	W10130022		Installation Instructions		Appelez-nous	-
2	4344793		Screw		Appelez-nous	-
3	WPW10233777		Rail Assy.   (Replaces: W10233777)				$ 349.36
4	W10275055		Support Shelf, Lh (bottom Drawer)		Appelez-nous	-
4	W10233778		Support Shelf, Lh (top Drawer)				$ 34.04
5	W10233779		Support Shelf, Rh (top Drawer)		Appelez-nous	-
5	W10275056		Support Shelf, Rh (bottom Drawer)		Appelez-nous	-
6	W10233780		Support Rubber C				$ 12.78
7	W10304199		Ladder, Lh		Appelez-nous	-
8	W10304198		Ladder, Rh		Appelez-nous	-
9	4344794		Screw		Appelez-nous	-
10	4344795		Washer		Appelez-nous	-
11	W10162986		Screw & Washer		Appelez-nous	-
12	W10281315		Thermal Fuse Assy.				$ 362.71
13	W10304193		Clip, Defrost Heater		Appelez-nous	-
14	W10204630		Lead Wire Support		Appelez-nous	-
15	W10204632		Liner Bushing		Appelez-nous	-
16	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
17	W10304008		Cover		Appelez-nous	-
