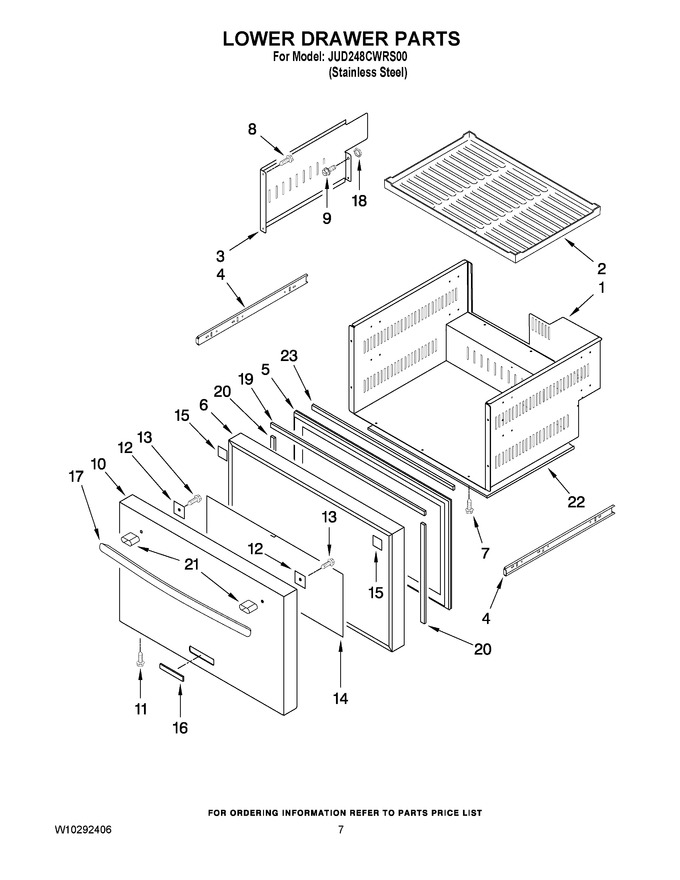

01 - Cabinet Parts


02 - Liner Parts


03 - Upper Drawer Parts


04 - Lower Drawer Parts


05 - Unit Parts


06 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10281593		Drawer Box Assy.		Appelez-nous	-
2	W10204922		Bottom Mat		Appelez-nous	-
3	W10270489		Drawer Partition		Appelez-nous	-
4	WPW10233777		Rail Assy.   (Replaces: W10233777)				$ 349.36
5	WPW10204700		Gasket   (Replaces: W10204700)			Immediately	$ 308.06
6	W10204924		Formed Door Assy		Appelez-nous	-
7	W10204808		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10292467		Bottom Wrap		Appelez-nous	-
11	W10837731		Screw   (Replaces: W10204865)				$ 8.30
12	W10299088		Plate, Door Handle		Appelez-nous	-
13	W10292468		Screw		Appelez-nous	-
14	W10204867		Wrap Spacer		Appelez-nous	-
15	W10204868		Wrap Gap Spacer		Appelez-nous	-
16	WPW10214168		Name Plate   (Replaces: W10292471)				$ 85.95
17	WPW10234622		Bar, Handle   (Replaces: W10292465)				$ 289.68
18	W10204920		Nut		Appelez-nous	-
19	W10204889		Door Gasket, Long		Appelez-nous	-
20	W10204897		Door Gasket, Short		Appelez-nous	-
21	W10292469		Stud, Handle Bar		Appelez-nous	-
22	W10281500		Door Gasket, Lower		Appelez-nous	-
23	W10281317		Cold Air Seal		Appelez-nous	-
