SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

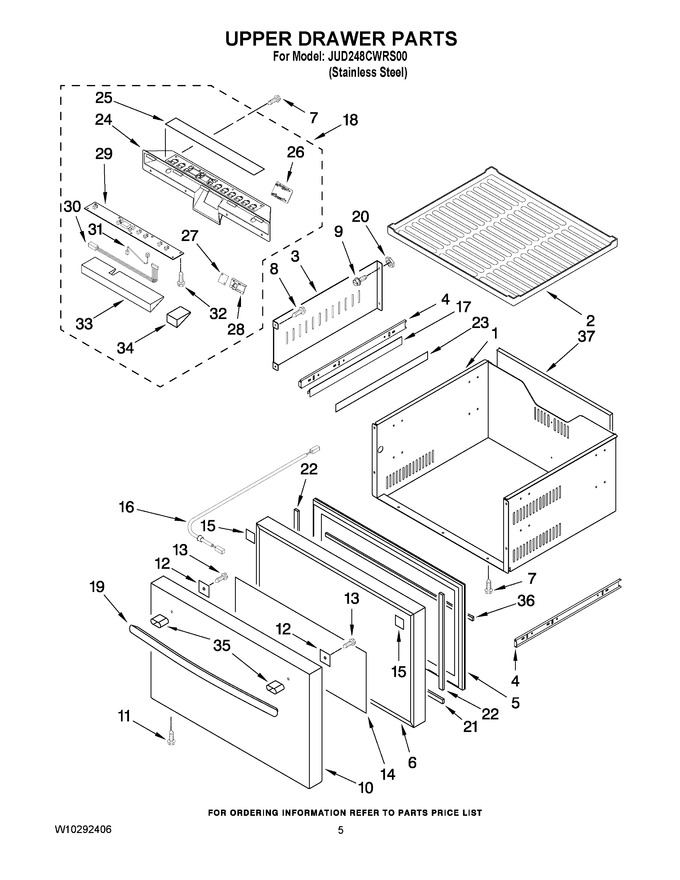

03 - Upper Drawer Parts


04 - Lower Drawer Parts


05 - Unit Parts


06 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10270484		Drawer Box Assy.		Appelez-nous	-
2	W10204698		Top Mat		Appelez-nous	-
3	W10270486		Drawer Partition				$ 299.33
4	WPW10233777		Rail Assy.   (Replaces: W10233777)				$ 349.36
5	WPW10204700		Gasket   (Replaces: W10204700)			Immediately	$ 308.06
6	W10204701		Top Door Assy.		Appelez-nous	-
7	W10204808		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10292467		Top Wrap		Appelez-nous	-
11	W10837731		Screw   (Replaces: W10204865)				$ 8.30
12	W10299088		Plate, Door Handle		Appelez-nous	-
13	W10292468		Screw		Appelez-nous	-
14	W10204867		Wrap Spacer		Appelez-nous	-
15	W10204868		Wrap Gap Spacer		Appelez-nous	-
16	W10488357		Indicator Harness   (Replaces: W10204884)			Immediately	$ 397.97
17	W10204885		Lead Wire Support		Appelez-nous	-
18	WPW10281592		Control Panel Assy   (Replaces: W10281592)				$ 841.29
19	WPW10234622		Bar, Handle   (Replaces: W10292465)				$ 289.68
20	W10204920		Nut		Appelez-nous	-
21	W10204889		Door Gasket, Long		Appelez-nous	-
22	W10204897		Door Gasket, Short		Appelez-nous	-
23	W10205081		Wire Support Tape				$ 62.83
24	W10281502		Control Panel		Appelez-nous	-
25	W10281594		Label, Panel		Appelez-nous	-
26	W10204929		Lamp Cover				$ 89.18
27	W10204930		Led Lamp				$ 347.60
28	W10204931		Lamp Holder				$ 79.66
29	WPW10281540		Display Pcb Assy.   (Replaces: W10281540)				$ 762.99
30	W10204933		Pcb Harness				$ 176.63
31	W10304194		Lamp Harness		Appelez-nous	-
32	W10204935		Screw		Appelez-nous	-
33	W10204936		Panel Insulation		Appelez-nous	-
34	W10204937		Panel Insulation B		Appelez-nous	-
35	W10292469		Stud, Handle Bar		Appelez-nous	-
36	W10287957		Seal, Cold Air		Appelez-nous	-
37	W10304205		Insulation, Basket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
