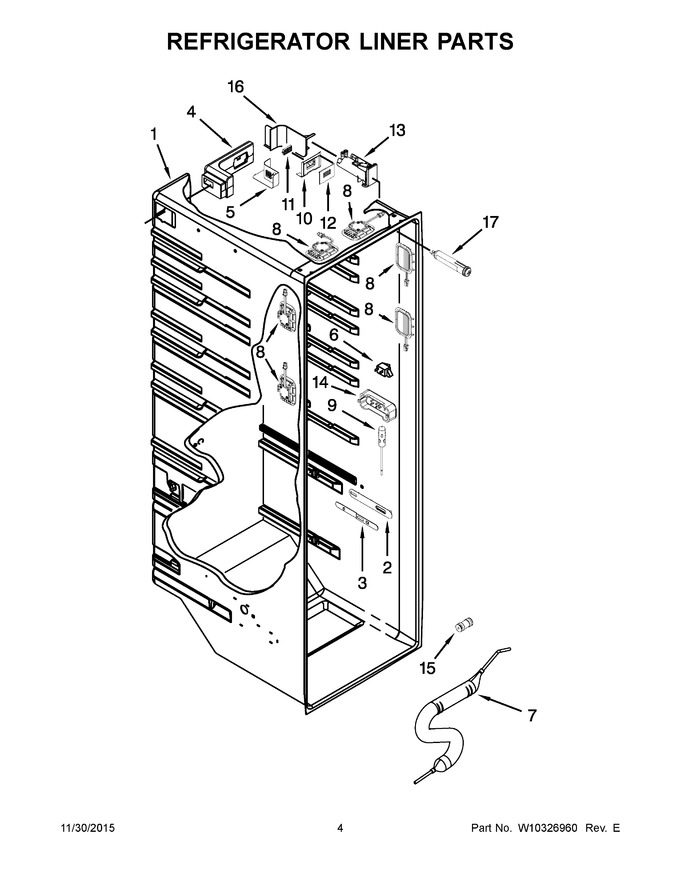

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10260988 | Escutcheon, Meat Pan Control |
|
- | |||||
| 3 | W10260989 | Slide, Meat Pan Control |
|
- | |||||
| 4 | W11177624 | Assembly, Air Diffuser (Replaces: W10699912) |
|
$ 123.67 | |||||
| 5 | WPW10260409 | Cover, Air Diffuser (Replaces: W10260409) |
|
$ 85.34 | |||||
| 6 | W11384469 | Switch, Light (Replaces: W10656773) |
|
Immediately | $ 39.09 | ||||
| 7 | W11802492 | Reservoir (Replaces: W10366790) |
|
$ 88.91 | |||||
| 8 | W11683241 | Assembly, Led Light Module (Replaces: W10637153) |
|
Immediately | $ 271.97 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 10 | W10342986 | Housing, Air Filter |
|
- | |||||
| 11 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 12 | W10340015 | Cover, Air Filter |
|
- | |||||
| 13 | WPW10238123 | Housing, Water Filter (Replaces: W10238123) |
|
$ 239.81 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 15 | WPW10271543 | Connector, Water Tube (Replaces: W10271543) |
|
Immediately | $ 35.43 | ||||
| 16 | WPW10260405 | Cover, Water Filter (Replaces: W10260405) |
|
$ 118.77 | |||||
| 17 | W10569758 | Filter, Water |
|
$ 0.03 |
