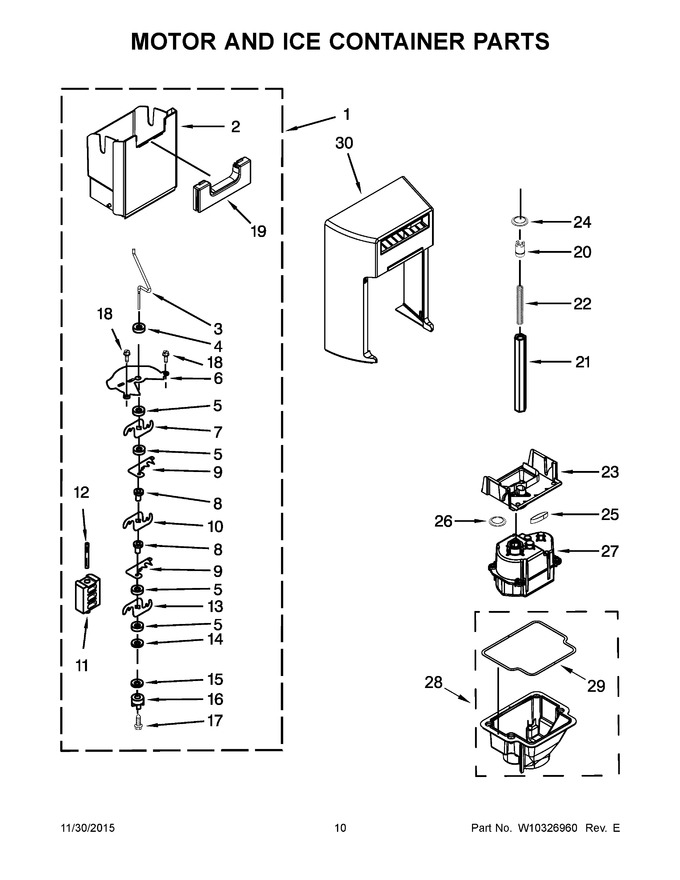

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11347840 | Ice Container (complete) (Replaces: W10774957) |
|
Immediately | $ 362.91 | ||||
| 2 | W10748468 | Bin, Ice |
|
$ 78.88 | |||||
| 3 | W10521477 | Auger, Crusher |
|
$ 112.49 | |||||
| 4 | 2258220 | Washer, Auger |
|
$ 8.02 | |||||
| 5 | W10341948 | Spacer, Step |
|
- | |||||
| 6 | W10178232 | Cover, Crusher |
|
$ 27.60 | |||||
| 7 | W10341942 | Blade, Rotary A |
|
- | |||||
| 8 | W10341946 | Spacer, Flat |
|
- | |||||
| 9 | 2257020 | Blade, Fixed |
|
$ 59.91 | |||||
| 10 | W10341943 | Blade, Rotary B |
|
- | |||||
| 11 | W10178238 | Block, Blade |
|
$ 11.46 | |||||
| 12 | W10166878 | Pin, Roll |
|
$ 12.20 | |||||
| 13 | W10341944 | Blade, Rotary C |
|
- | |||||
| 14 | 489235 | Washer |
|
$ 8.05 | |||||
| 15 | WP2198661 | Washer, Top Coupling (Replaces: 2198661) |
|
$ 11.45 | |||||
| 16 | WP2220457 | Coupling, Top (Replaces: 2220457) |
|
Immediately | $ 35.92 | ||||
| 17 | WP8281164 | Screw (stainless) (Replaces: 8281164) |
|
$ 11.33 | |||||
| 18 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 19 | W11652042 | Assembly, Latch (Replaces: W10258552) |
|
Immediately | $ 24.98 | ||||
| 20 | WP2220458 | Coupling, Bottom (Replaces: 2220458) |
|
Immediately | $ 41.04 | ||||
| 21 | WPW10258544 | Shaft, Drive (Replaces: W10258544) |
|
Immediately | $ 26.52 | ||||
| 22 | W10852956 | Spring, Coupling (Replaces: 2198607) |
|
Immediately | $ 21.40 | ||||
| 23 | W11573761 | Assembly, Mounting Plate (Replaces: W10293211) |
|
Immediately | $ 62.92 | ||||
| 24 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 25 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 27.68 | |||||
| 26 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 25.35 | |||||
| 27 | W11202789 | Motor, Dispenser (Replaces: W10225313) |
|
Immediately | $ 235.12 | ||||
| 28 | W11678273 | Assembly, Motor Box (Replaces: W10765378) |
|
Immediately | $ 77.02 | ||||
| 29 | W10166854 | Gasket |
|
$ 26.69 | |||||
| 30 | WPW10287594 | Cover, Container (Replaces: W10287594) |
|
$ 229.19 |
