SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts

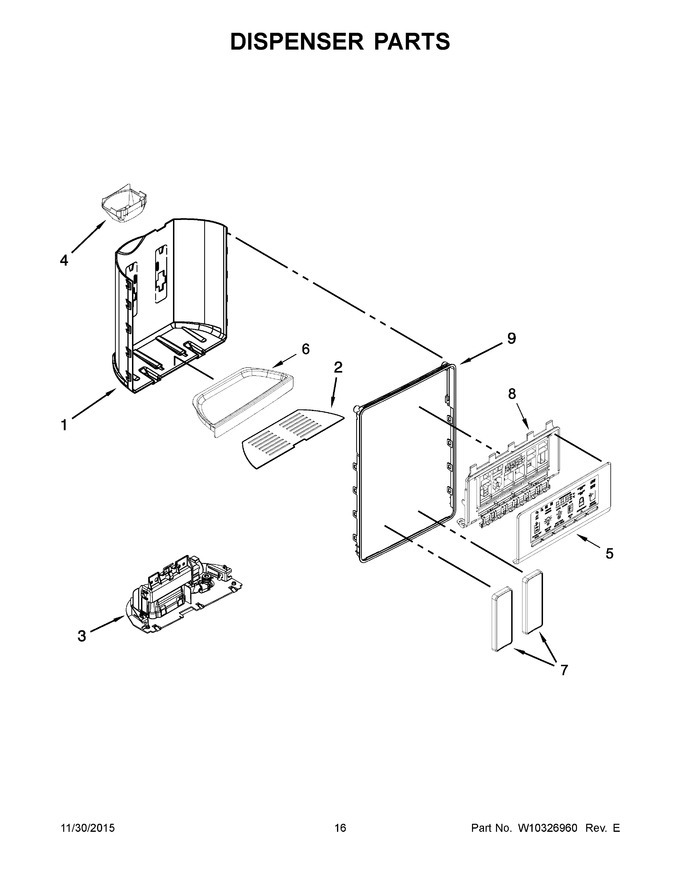

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276209		Grate, Drip Tray (stainless)   (Replaces: W10276209)				$ 81.55
3	W10838126		Assembly, Separator   (Replaces: W10493171)				$ 164.33
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
5	W10276231		Cover, Front (black)		Appelez-nous	-
6	W10254258		Tray, Drip (white)				$ 99.03
7	WPW10370593		Pad, Ice And Water (white)   (Replaces: W10370593)				$ 311.61
8	WPW10372210		Assembly, Electronic Control   (Replaces: W10372210)				$ 305.83
9	W10276265		Trim Ring (white)				$ 63.74
5A	W10254266		Cover, Front (silver)				$ 121.64
6A	W10254259		Tray, Drip (black)				$ 71.51
6B	W10276225		Tray, Drip (satina)				$ 74.06
7A	WPW10370592		Pad, Ice And Water (black)   (Replaces: W10370592)				$ 322.90
7B	WPW10370594		Pad, Ice And Water (grey)   (Replaces: W10370594)				$ 310.61
9A	W10448931		Trim Ring (chromium Frost)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
