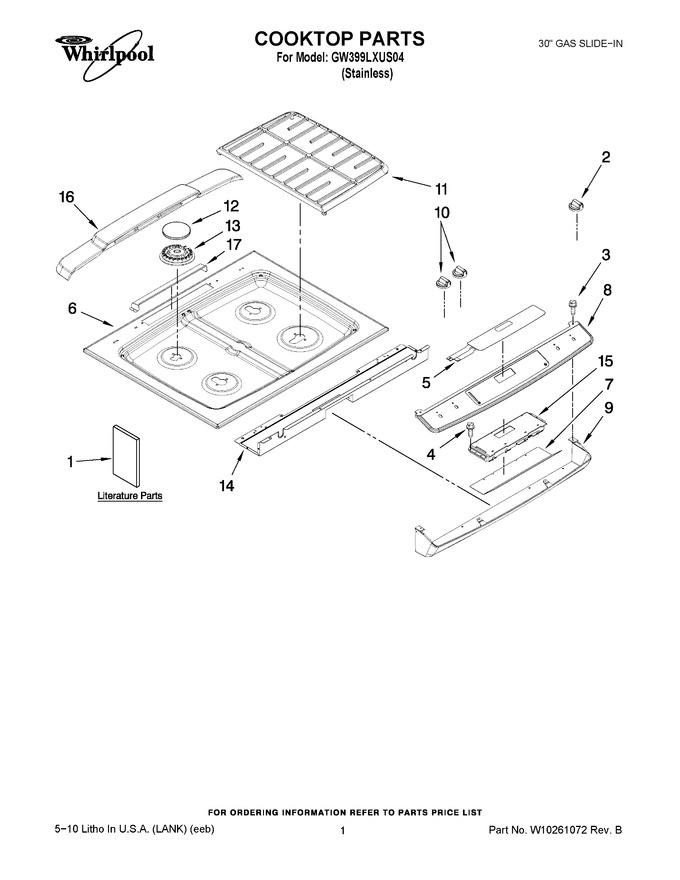

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10196155		Owners Manual		Appelez-nous	-
1	W10198590		Tech Sheet (english)		Appelez-nous	-
1	W10198592		Tech Sheet (french)		Appelez-nous	-
1	W10196159		Instructions Installation		Appelez-nous	-
1	9757142		Template,anti-tip (english/spanish)		Appelez-nous	-
1	9757143		Template,anti-tip (english/french)		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
2	W10177201		Knob, (accusimmer)   (Replaces: 7733P532-60)				$ 20.03
3	7101P501-60		Screw		Appelez-nous	-
4	WP59002061		Screw   (Replaces: 7101P077-60)				$ 7.75
5	WPW10207933		Membrane, Switch   (Replaces: W10207933)				$ 290.92
6	2001W231-09		Cooktop		Appelez-nous	-
7	W10166279		Shield, Control		Appelez-nous	-
8	W10279069		Panel, Control				$ 201.73
9	W10185606		Panel,control(lwr)				$ 130.08
10	WP7733P526-60		Knob, Valve (3)   (Replaces: 7733P526-60)			Immediately	$ 23.96
11	7518P485-60		Grate, Burner (2)		Appelez-nous	-
12	WPW10183369		Cap, Burner (black, 9k (1))   (Replaces: W10183369)				$ 65.11
12	WPW10183368		Cap, Burner (black 16k (1))   (Replaces: W10183368)				$ 85.21
12	WPW10183370		Cap, Burner (black 5k (1))   (Replaces: W10183370)				$ 64.75
12	WPW10183371		Cap, Burner (black 12.5k (2))   (Replaces: W10183371)				$ 103.50
13	WPW10406878		Base, Burner (16k Rf (1))   (Replaces: 8286183)				$ 102.36
13	WPW10406797		Base, Burner (12k Rr,lf (2))   (Replaces: 8286182)				$ 88.49
13	WPW10406243		Base, Burner (6k Lr (1))   (Replaces: 8286181)			Immediately	$ 37.22
14	3807F769-51		Support, Cntl Pnl		Appelez-nous	-
15	8507P391-60		Control, (erc)				$ 421.07
16	7724P201-60		Cover, Vent		Appelez-nous	-
17	3601F221-45		Baffle, Vent Cover				$ 28.30
